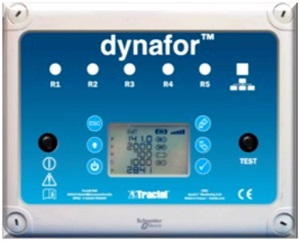

DMU - dynafor™ monitoring unit

The dynafor^™ monitoring unit is a configurable device for managing 5 relays which are triggered in response to signals received from 1 or more load indicators and load limiters.

2 configurations possible

• RS DMU: wired connection
• WL DMU: wireless connection

When using the Dynafor^™ monitoring unit, users can:

• Measure the rope tension or loads from 1 or more sensors
• Manage 5 relays with adjustable thresholds and hysteresis
• Monitor the network
• Check the dynamic effects
• Include data (black box)
• Connect the unit to a AL63/AL128 LED display with a cable
• Connect the unit to a hand-held display with ZigBee 2.4 GHz technology
• Connect the unit to a PC with a USB interface
