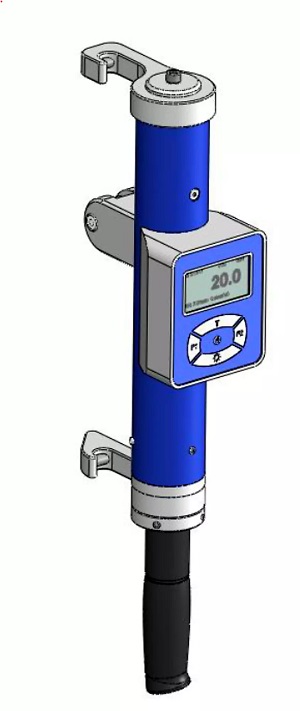

The display contains a standard data bank (SDB, see operating instructions)
tions), including a series of ropes. The conditions for creating a bath bank are as follows:
• Rope 8 m long
• Fixed between one fixed point and another, elastic, for extinguishing
reduction of rope shrinkage by 1.5 mm caused by installing a strain gauge.
If the test conditions do not correspond to those described above or if the measured
the rope does not appear in the data bank, it is recommended to carry out calibration in
special mode (see instructions) or request special calibration
using the appropriate form (ask at the sales department of LLC "TRAK-
TEL Russia").
• Accuracy: < 1% of measured force
• Operating temperature: -20°C...+60°C
• Degree of protection: IP65
• Power: 3 AA batteries 1.5V
• USB port
• Recording of performed operations (software included)
• Power from 50 to 3000 daN. |
