Monorail trolley, reduced headroom Balkancarpodem

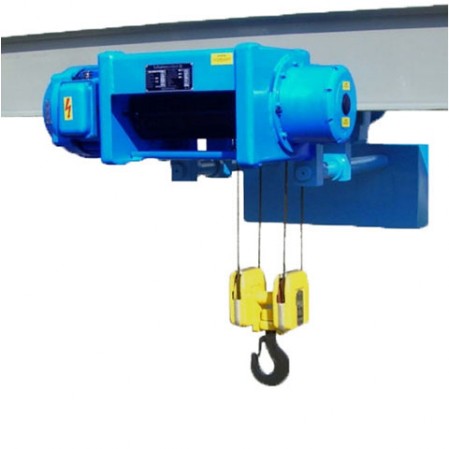

Low-height electric overhead hoists with lifting capacity from 1.0 to 16.0 tons

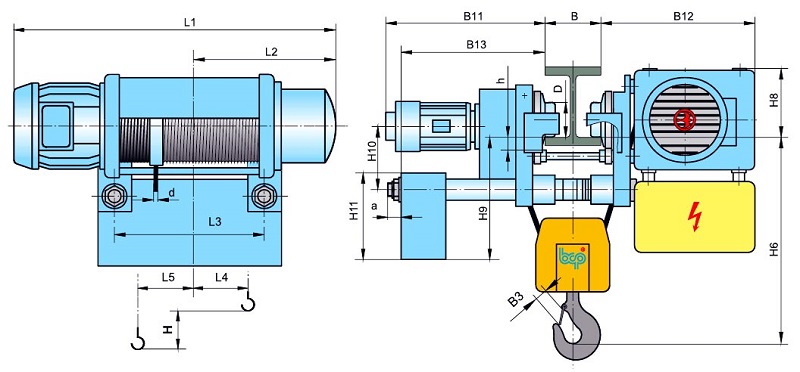

Low-height hoists are characterized by more complete use of the room height in conditions limited by the building's structural elements, as they have a lifting height 500...900 mm greater than standard-design hoists (see the table of parameter n6 below). There are several hoist modifications, differing in the design of the body.

When ordering a hoist, the consumer can choose the following design options: with a wired remote control or radio remote control; various lifting and moving speeds, including several speeds; block and tackle multiplicity 1/1; 2/2; 2/1; 4/4; 4/1, etc. Electric suspended hoists with a lifting capacity from 1.0 to 16.0 tons are mounted (suspended) on a monorail track made of a special I-beam of the following types: 24 m, 30 m, 36 m and 45 m according to GOST 19425-74. The hoist can be used as an independent lifting mechanism or as part of a single-girder crane.

connect with us:

Grygorii Gumyniuk

+38 (050) 381-52-70

grigori@gutman.com.ua

Download Price List buy product

Hoists with lifting height up to 36.5 m, low construction height


	Loading capacity, tons
Lifting height, m	1,0	1,6	2,0	2,5	3,2	4,0	5,0	6,3	8,0	10,0	12,5	16,0
6	++	++	++	++	++/+	++/+	++/+	++/+	+	+	+
6,5			+		+
7,5									++
8									++		+	+
9		++	++	++	++	++	++/+	++/+	+	+	+
9,5	++	++			+	+
10			+		+
11			+		+						+	+
12		++	++	++	++	++	++	++	++/+	+	+
12,5							+	+
13	++	++	+		+	+
13,5					+
14,5											+	+
15									+	+	+
15,5							+	+
16,5									++
17,5											+	+
18						++	++	++	+	+	+
18,5				++	++
19		++	++
20	++	++
22,5									++
24						++	++	++
25				++	++
26		++	++
27	++	++
29	++	++							++
30						++	++	++
31,5				++	++
34,5									++
36,5						++	++	++

Note: the sign - "++" indicates hoists with a 2/1 block and tackle and a standard lifting speed of 8 m/min; the sign - "+" indicates hoists with a 4/1 block and tackle and a standard lifting speed of 4 m/min.
