Balkansko Echo electric chain hoists, BE series

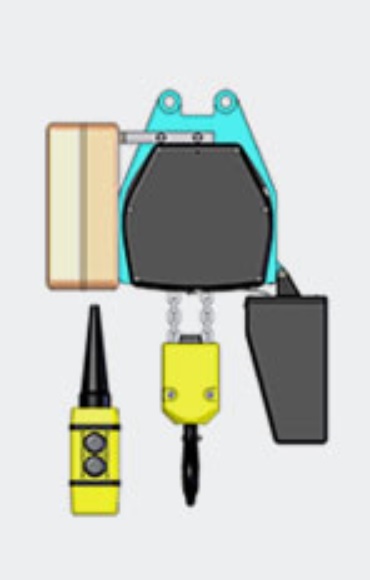

Electric chain hoists of BE type

Electric chain hoists of BE Series are characterized by a compact design, high performance and low maintenance costs. They are produced with lifting capacities of 125 to 1000 kg and different lifting heights and speeds, depending on customer needs. High quality materials with proven origin from certified producers are used for the manufacturing of each component. They are equipped with powerful three-phase motors, a load limiter and a limit switch, which protect the equipment from overload and breakdowns. Òhe electric chain hoists of Series BE meet the highest international quality standards, as well as all other products in the product line of the company.

connect with us:

Grygorii Gumyniuk

+38 (050) 381-52-70

grigori@gutman.com.ua

Technical data

Voltage: 380–400V (special performances - upon request)
Frequency: 50Hz (special performances - upon request)
Operating voltage: 24 V, (42 V)
Class of protection IP54 (EN 60529)




Stationary ÂÅ01… ÂÅ02…

Hung on a hook ÂÅ03… ÂÅ04…

With trolley ÂÅ05… ÂÅ06…

With an electric trolley ÂÅ09… ÂÅ12…

Operation conditions

- climate - normal, tropical or marine;
- normal or chemically aggressive environment;
- ambient temperature of -25°Ñ to +40°Ñ;
- relative air humidity – 80% at 20°Ñ;
- indoors or outdoors or under a shelter at normal fire risk.

Types of BE series hoists

Electric chain hoist of BE type, stationary
Electric chain hoist of BE type, stationary on a hook
Electric chain hoist of BE type, conveying with a loose trolley
Electric chain hoist of BE type, conveying with a motor trolley
