Steel rope GOST 7668-80



This type of ropes is mainly used for lifting and transport machines and mechanisms, mine ropes for lifting installations (lifter, crane-beams, truck cranes, bridge cranes, etc.) Steel rope GOST 7668-80 offered by Trading House "Gutman-Ukraine" is a

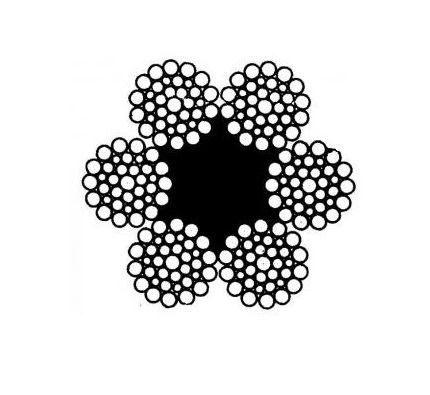

  • double coil rope type LK-RO construction 6 x 36 (1+7+7/7+14) + 1 o.s. (organic core)

According to GOST, it applies to steel ropes of double winding with linear contact of wires in strands type LK-RO with one organic core.



This type of rope is mainly used for lifting and transport machines and mechanisms, mine ropes for lifting installations (hoist, crane-beams, truck cranes, bridge cranes, etc.)

Double coiling involves twisting the wire mass into strands with their subsequent transformation into a rope. This type of ropes is put into operation in open space, for example, on construction platforms, metallurgical enterprises and mines. In such stressful conditions, the use of ropes is extremely necessary for the organization of various types of work performed by cranes, lifting mechanisms, excavators, scrapers, and cable cranes.

Before buying a wire product, you should familiarize yourself with the regulatory document, which describes the technical characteristics and features of steel rope with a double coil. In order to buy a rope profitably, you need to check its quality very carefully. The selection of a steel wire device also depends on the given operating conditions. At the same time, you should be guided by the provisions of the standard (steel cable, rope guest 7668-80 or others), which provides recommendations for determining the quality level.


Thus, steel ropes with a double coil can be used for work under heavy loads, as well as in conditions of increased danger. For easy readability of the rope characteristics marked on the tags of the drums (packages of steel ropes) and certificates, below is a description of the main marked ropes (cables), which is the same for almost all ropes manufactured according to GOST.



  Rope diameter, mm

Weight of 1000 m of rope, kg

Marking group, 1770 (180)

Total breaking force, N

Breaking force of the rope as a whole, N

6,3

155,50

27700

22650

6,7

176,00

31400

25700

7,4

199,00

35550

29100

8,1

253,50

42250

37050

9,0

310,50

55450

45450

9,7

383,50

68450

56100

11,5

513,00

91650

75100

13,5

696,50

124000

101500

15,0

812,00

144500

116500

16,5

1045,00

186500

150000

18,0

1245,00

221500

175500

20,0

1520,00

271500

215000

22,0

1830,00

258500

258500

23,5

2130,0

380500

304000

25,5

2495,0

445000

352500

27,0

2800,0

500500

396500

29,0

3215,0

574000

454500

31,0

3655,0

652500

517000

33,0

4155,0

742500

588000

34,5

4550,0

813000

644500

36,5

4965,0

887000

703500

38,0

5510,0

984000

777500

39,5

6080,0

1085000

86100

42,0

6750,0

1205000

95500

43,0

7120,0

1265000

1005000

44,5

7770,0

1385000

1095000

46,5

8400,0

1500000

1180000

48,5

9155,0

1635000

1290000

50,5

9940,0

1775000

1400000

53,5

11150,0

1995000

1570000

56,0

12050,0

2150000

1715000

58,5

13000,0

2315000

1790000

60,5

14250,0

2550000

1970000

63,0

15200,0

2710000

2085000

65,0

16100,0

2880000

2210000

68,0

17700,0

3160000

2430000

72,0

19800,0

3540000

2715000
