Steel rope (cable) DIN 3055

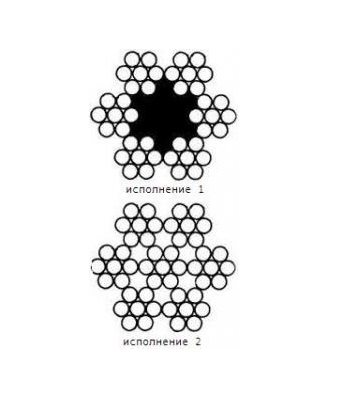

The steel rope DIN 3055 offered by the Trading House "Gutman-Ukraine" is a double lay rope of the structure

6 x 7 (1+6) + 1 o s. (organic core version 1)
6 x 7 (1+6) + 1 x 7 (1+6). (metal core version 2)

This type of rope is mainly used as low-twisting ropes for lifting machines and mechanisms, as well as ropes for vehicles and computer equipment.

Download Price List buy product

The table shows the characteristics of steel ropes for marking group 1770 (180), the most widely used in the crane industry in Ukraine. Additionally, the table contains reference (approximate) data on the weight of 1000 m of rope

Table 1 (version 1 with organic core)

Rope diameter, mm	*Weight of 1000 m of rope, kg*	*Marking group, 1770 (180)*
Rope diameter, mm	*Weight of 1000 m of rope, kg*	*Total breaking force, N*	*Breaking force of the rope as a whole, N*
2,0	14,3	2610	2350
3,0	32,2	5880	5290
4,0	57,20	10500	9410
5,0	89,4	16300	14700
6,0	129,0	23500	21100
7,0	175,0	32000	28800
8,0	229,0	41800	37600
9,0	289,0	52900	47600
10,0	357,0	65300	58800
11,0	432,0	79100	71100
12,0	515,0	94100	84700
13,0	604,0	110000	99400
14,0	701,0	128000	115000
16,0	915,0	167000	151000
18,0	1160,0	212000	191000
20,0	1430,0	261000	235000
22,0	1730,0	316000	285000
24,0	2060,0	376000	339000
26,0	2420,0	442000	397000
28,0	2800,0	512000	461000
32,0	3660,0	669000	602000
36,0	4630,0	847000	762000
38,0	5158,0	943000	848700

Table 2 (version 2 with metal core)

*Rope diameter, mm*	Weight of 1000 m of rope, kg	Marking group, 1770 (180)
*Rope diameter, mm*	Weight of 1000 m of rope, kg	Total breaking force, N	Breaking force of the rope as a whole, N
2,0	15,7	3030	2540
3,0	35,4	6820	5710
4,0	62,9	12100	10200
5,0	98,3	18900	15900
6,0	142,0	27300	22900
7,0	193,0	37100	31100
8,0	252,0	48500	40600
9,0	318,0	61400	51400
10,0	393,0	75800	63500
11,0	475,0	91700	76800
12,0	567,0	109000	91500
13,0	664,0	128000	107000
14,0	771,0	149000	124000
16,0	1010,0	194000	163000
18,0	1280,0	246000	206000
20,0	1570,0	303000	254000
22,0	1900,0	367000	307000
24,0	2270,0	437000	366000
26,0	2660,0	512000	429000
28,0	3080,0	594000	498000
32,0	4030,0	776000	650000
36,0	5090,0	982000	823000
38,0	5674,0	1093800	916500
