The table shows the characteristics of steel ropes for marking group 1770 (180), the most widely used in the crane industry in Ukraine. Additionally, the table contains reference (approximate) data on the weight of 1000 m of rope |
|
|

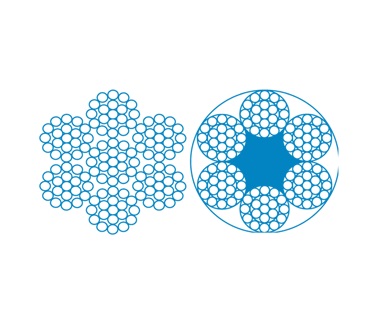

Table 1 (version 1 with organic core) Rope diameter, mm | Weight of 1000 m of rope, kg | Marking group, 1770 (180) | Total breaking force, N | Breaking force of the rope as a whole, N | 3,0 | 31,1 | 5690 | 4900 | 4,0 | 55,4 | 10100 | 8700 | 5,0 | 86,5 | 15800 | 13600 | 6,0 | 125,0 | 22800 | 19600 | 7,0 | 170,0 | 31000 | 26700 | 8,0 | 221,0 | 40500 | 34800 | 9,0 | 280,0 | 51200 | 44100 | 10,0 | 346,0 | 63300 | 54400 | 11,0 | 419,0 | 76500 | 65800 | 12,0 | 498,0 | 91100 | 78300 | 13,0 | 585,0 | 107000 | 91900 | 14,0 | 678,0 | 124000 | 107000 | 16,0 | 886,0 | 162000 | 139000 | 18,0 | 1120,0 | 205000 | 176000 | 20,0 | 1380,0 | 253000 | 218000 | 22,0 | 1670,0 | 306000 | 263000 | 24,0 | 1990,0 | 364000 | 313000 | 26,0 | 2340,0 | 428000 | 368000 | 28,0 | 2710,0 | 496000 | 426000 | 32,0 | 3540,0 | 648000 | 557000 | 36,0 | 4480,0 | 820000 | 705000 |
|
|
|
Table 2 (versions 2 and 3 with metal core) Rope diameter, mm | Weight of 1000 m of rope, kg | Marking group, 1770 (180) | Total breaking force, N | Breaking force of the rope as a whole, N | 3,0 | 34,2 | 6600 | 5290 | 4,0 | 60,9 | 11700 | 9400 | 5,0 | 95,2 | 18300 | 14700 | 6,0 | 138,0 | 26400 | 21200 | 7,0 | 187,0 | 36000 | 28800 | 8,0 | 243,0 | 47000 | 37600 | 9,0 | 308,0 | 59400 | 47600 | 10,0 | 381,0 | 73400 | 58800 | 11,0 | 461,0 | 88800 | 71100 | 12,0 | 548,0 | 106000 | 84600 | 13,0 | 643,0 | 124000 | 99300 | 14,0 | 746,0 | 144000 | 115000 | 16,0 | 974,0 | 188000 | 150000 | 18,0 | 1230,0 | 238000 | 190000 | 20,0 | 1520,0 | 293000 | 235000 | 22,0 | 1840,0 | 355000 | 284000 | 24,0 | 2190,0 | 423000 | 338000 | 26,0 | 2570,0 | 496000 | 397000 | 28,0 | 2980,0 | 575000 | 461000 | 32,0 | 3900,0 | 751000 | 602000 | 36,0 | 4930,0 | 951000 | 761000 |
|
|
