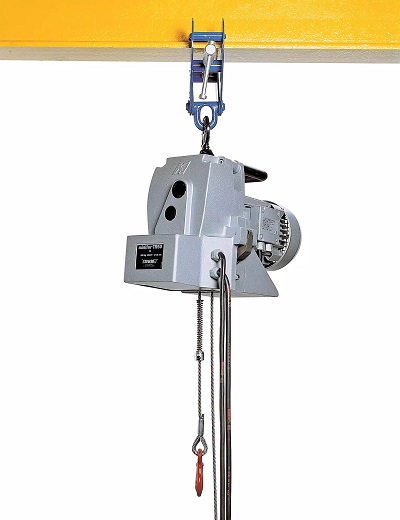

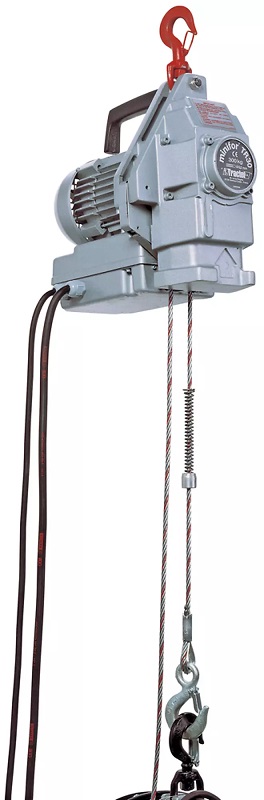

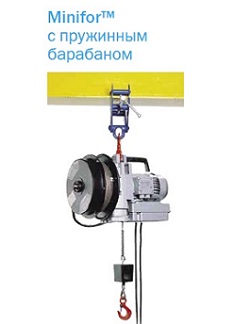

Product description Equipped with a self-clamping wire rope drive system, the Minifor TR series allows for unlimited lifting height, using a continuous rope. It is available across multiple models including TR10, TR30, TR30S, TR50, TR55, and TR110, with working load limits ranging from 100 kg to 1100 kg. Units can be configured for direct or sheaved lifting using a single or dual-fall setup. Operators can choose between plug-in control pendants or radio remote control with up to 500 m range. Power supply options include 115V, 230V (1-phase), and 400V (3-phase), depending on the model. This hoist series is widely used in elevator installation, building maintenance, and construction lifting tasks, offering unmatched versatility and ease of use. Optional sheaving kits, anti-rotating ropes, and winders extend operational flexibility while built-in limit switches and overload protection enhance operational safety and compliance with CE Machinery Directive 2006/42/CE. Key features- Unlimited lifting height with continuous wire rope system
- Load capacities from 100 kg to 1100 kg depending on model and sheaving
- Available with radio remote control or plug-in pendant (up to 500 m range)
- Operates on 115V/230V single-phase or 400V three-phase power
- Integrated overload protection (TR110) and IP55 protection rating
- Compact, ergonomic design for easy transport and installation
- Up and down adjustable limit switches for added safety.
|
