Explosion-proof wire rope hoists BT series

Pulley system

Stationary

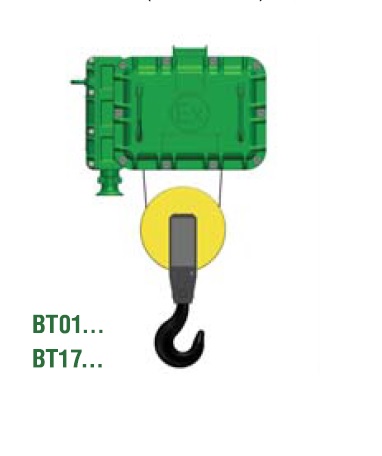

on fingers suspended VT01... VT17

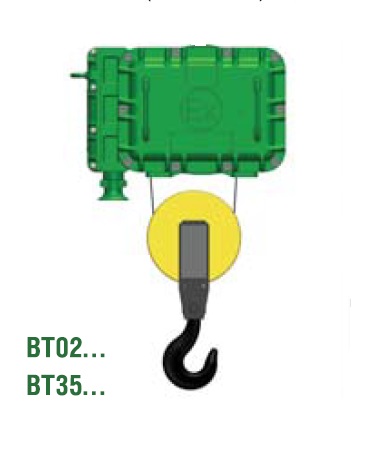

on feet support or suspended VT02... VT35...

• Load capacity: 400 -16000 kg
• Pulley system: 1/1; 2/1; 4/1; 2/2
• Lifting height: 6 - 72 m
• Lifting speed: 2 - 16 m/min
• (at micro speed at 1:4 ratio)

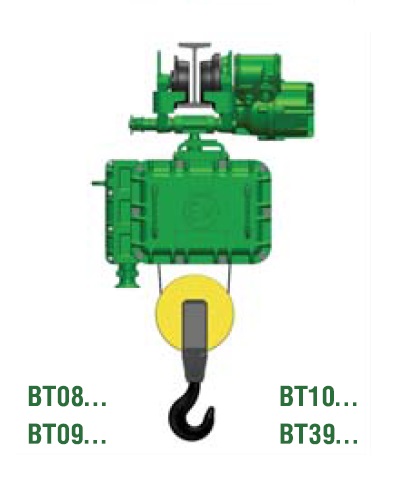

With monorail trolley (normal construction height)

Midships VT 08...VT10...
Models VT 09...VT 39...

• Load capacity: 400 - 12,500 kg
• Pulley system: 2/1; 4/1
• Special versions - 1/1; 2/2
• Lifting height: 6 - 36 m
• Special versions - up to 72 m
• Lifting speed: 2 - 8 m/min
• (at micro speed at 1:4 ratio)
• Special versions - 16 m/min
• Movement speed: 8; 10; 20; 12/4; 15/5; 20/6; 32/10 m/min

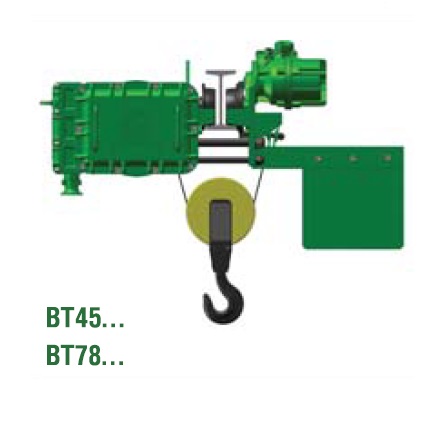

With monorail trolley (reduced construction height)

Models VT 45...
Models VT48...

• Load capacity: 400 - 16000 kg
• Special versions - up to 20,000 kg
• Pulley system: 2/1; 4/1; 2x1; 4x2
• Special versions - 4/2
• Lifting height: 5.5 - 60 m
• Special versions - up to 120 m
• Lifting speed: 1 - 32 m/min
• (with micro speed at ratio 1:4 and 1:6)
• Movement speed: 8; 10; 12; 15; 20; 32; 12/4; 15/5; 20/6; 32/10 m/min

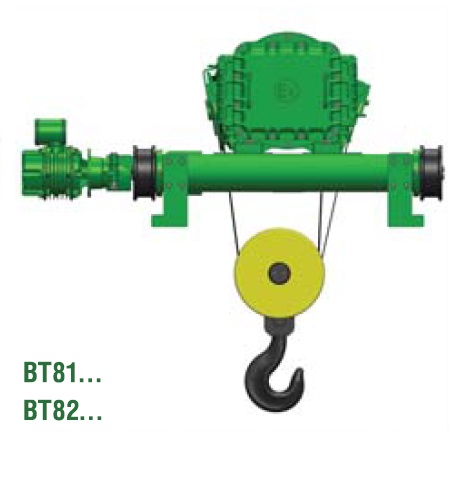

With double rail trolley

Models VT 81...
Models VT 82...

• Load capacity: 1000 - 16000 kg
• Pulley system: 1/1; 2/1; 4/1; 2/2
• Lifting height: 6 - 36 m
• special versions - up to 72 m
• Lifting speed: 2 - 8 m/min
• (at micro speed at 1:4 ratio)
• special versions - 32 m/min
• Movement speed: 8; 10; 12; 15; 20 m/min
• (at micro speed at 1:3 ratio)
• Rail spacing: 1000 - 2800 mm
