Explosion-proof rope electric hoists ВMT series

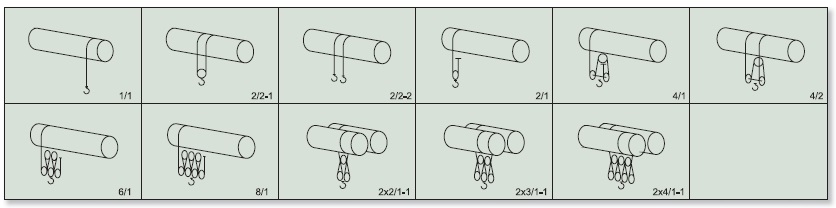

Pulley system

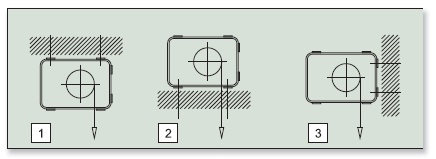

Mounting methods

1. Hanging
2. Reference
3. With one-sided fastening

Stationary

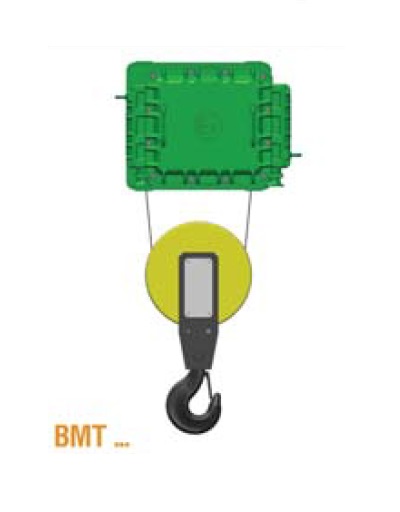

BMT

Load capacity: 400 - 32000 kg
Special versions - up to 63000 kg
Pulley system: 1/1; 2/1; 4/1; 2/2; 4/2
Special versions - 6/1; 8/1; 2x2/1-1; 2x3/1-1; 2х4/1-1
Lifting height: 4.5 - 104 m
Lifting speed: 1 - 20 m/min
(at micro speed at 1:4 ratio)

With monorail trolley

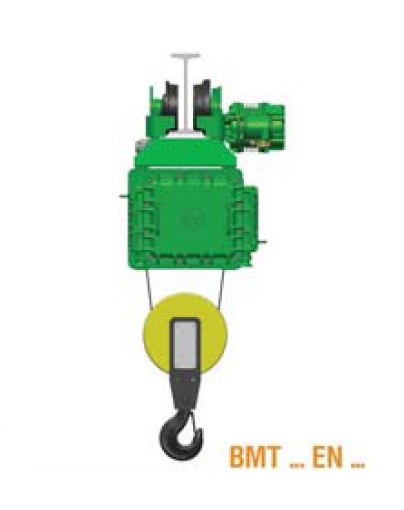

BMT-EN
(normal building height)

• Load capacity: 400 - 20000 kg
• Pulley system: 2/1; 4/1; 4/2; 2х2/1-1
• Special versions - 1/1; 2/2
• Lifting height: 4.5 - 60 m
• Special versions - up to 120 m
• Lifting speed: 1 - 20 m/min
  (at micro speed at 1:4 ratio)
• Special versions - 32 m/min
• Movement speed:
  8; 10; 12; 20; 12/4; 15/5; 20/6; 32/10m/min

With monorail trolley

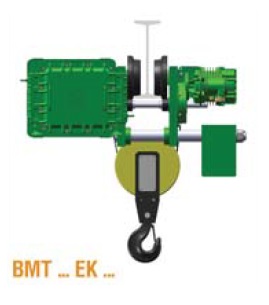

BMT-EK
(reduced building height)

Load capacity: 400 - 16000 kg
Special versions - up to 20000 kg
Pulley system: 1/1; 2/1; 4/1;
Special versions - 4/2
Lifting height: 4.5 - 60 m
Lifting speed: 1 - 20 m/min
(at micro speed at 1:4 ratio)
Movement speed:
8; 10; 12; 20; 12/4; 15/5; 20/6; 32/10 m/min

With double rail trolley

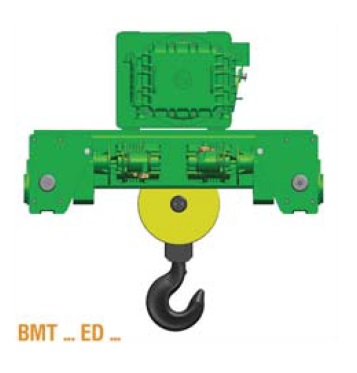

ВМТ-ED

• Load capacity: 1000- 32000 kg
• Special versions - up to 63000 kg
• Pulley system: 1/1; 2/1; 4/1; 2/2; 4/2
• Special versions - 6/1; 8/1; 2x2/1-1; 2x3/1-1; 2х4/1-1
• Lifting height: 4.5 - 60 m
• Special versions - up to 120 m
• Lifting speed: 1 - 20 m/min
• (at micro speed at 1:4 ratio)
• Special versions - 32 m/min
• Movement speed: 8; 10; 12; 15; 20; 32; 40 m/min
• (at micro speed at 1:3 ratio)
• Rail spacing: 1000 - 2800 mm

TECHNICAL DATA
