Chain electric hoists "Skladova Tekhnika" series B
Electric chain hoists (chain hoists) series B
- Loading capacity: from 125 kg to 1000 kg;
- Lifting height: 3.2 m;
- Polyspast multiplicity: 1/1; 2/1
- Group according to FEM 9.511:1Am:
- Lifting electric motor: with a conical rotor and a built-in brake;
- Travel electric motor: with a conical or cylindrical rotor;
- Lifting speed:
- main/micro 8/2.4 m/min, (polyspast 1/1)
- main/micro 4/1.2 m/min, (polyspast 2/1)
- Travel speed: 20 m/min;

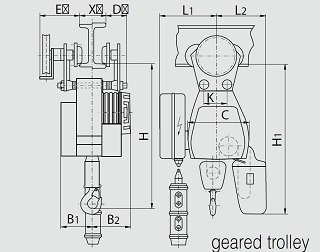

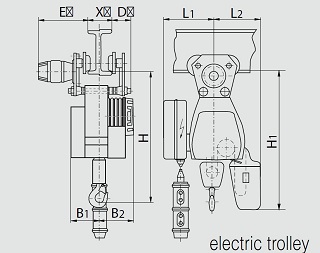

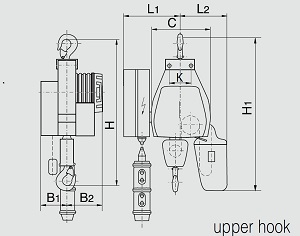

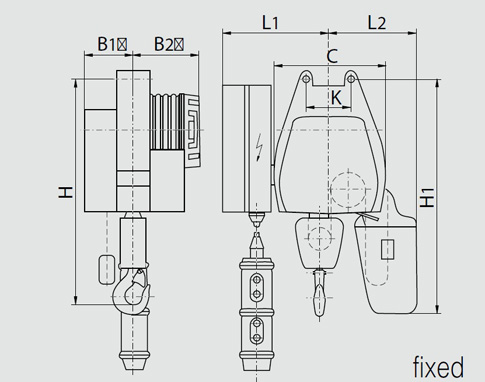

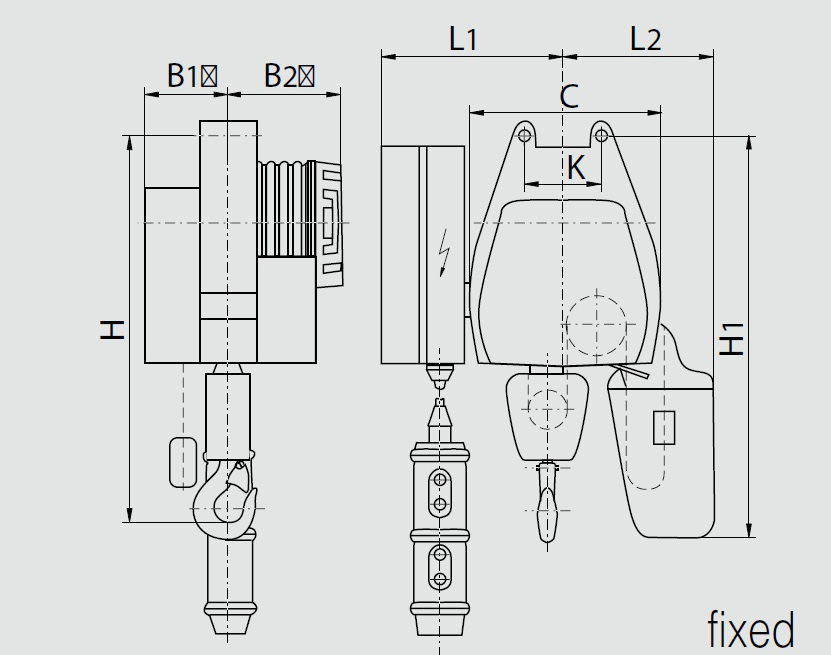

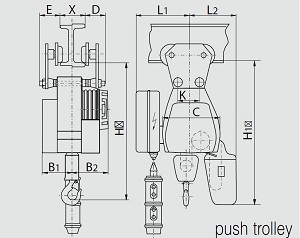

- Upper suspension: stationary, on the upper hook, on an idle trolley, on a hand trolley, on an electric trolley;
- Control: contactor;
- Power supply voltage: three-phase -380V/50Hz
