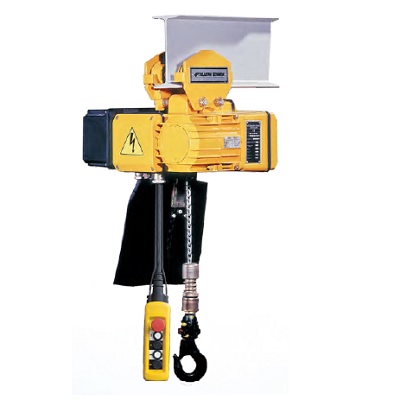

Chain electric hoists "Skladova Tekhnika" series EB

Electric chain hoists (chain hoists) of the EB series

Loading capacity: from 125 kg to 1000 kg;
Lifting height: 3.2 m;
Pulley ratio: 1/1; 2/1
FEM group 9.511:1Am:
Lifting electric motor: with a conical rotor and built-in brake;
Travel electric motor: with a conical or cylindrical rotor;
Lifting speed:
main/micro 10/2.5 m/min, (pulley hoist 1/1)
main/micro 5/1.2 m/min, (pulley hoist 2/1)
Travel speed: 20 m/min;
Upper suspension: stationary, on the upper hook, on an idle trolley, on a hand trolley, on an electric trolley;
Control: contactor;
Power supply voltage: three-phase -380V/50Hz

Options:

lifting height varies from 3.2 m;
power supply voltage varies from 380V/50Hz;
travel mechanism electric motor with built-in brake;
various travel speeds;
thermal protection on electric motors;
load limiter;
remote control;
frequency control;
climatic zone: normal, tropical.

connect with us:

Grygorii Gumyniuk

+38 (050) 381-52-70

grigori@gutman.com.ua

Download Price List buy product

Electric chain hoists "Skladova Tekhnika" series EB manufactured by "Skladova Tekhnika" are of the following types:

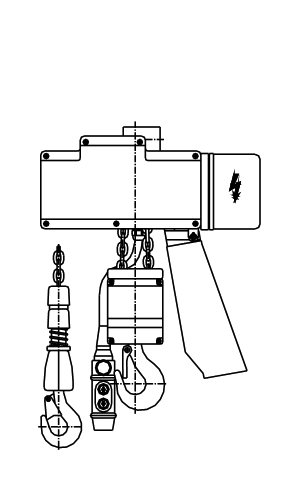

Stationary electric chain hoists (chain hoists) series EB...

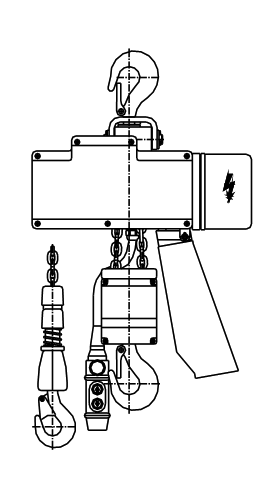

Stationary electric chain hoists (chain hoists) on a hook series EB...

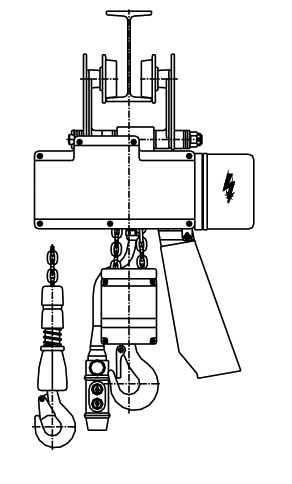

Electric chain hoists (chain hoists) with an push trolley series EB...

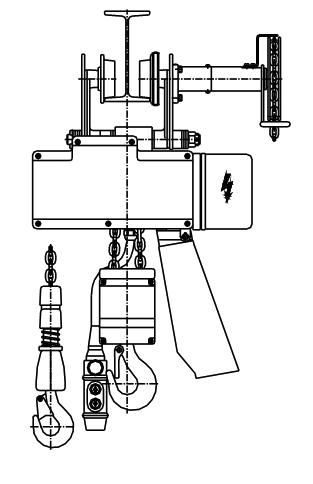

Electric chain hoists (chain hoists) with a driven trolley series EB...

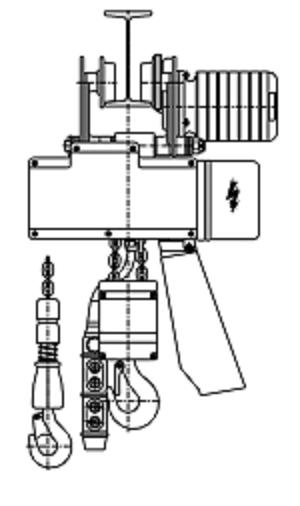

Electric chain hoists (chain hoists) with an electric trolley series EB...

Stationary electric chain hoists (chain hoists) series EB...

Stationary electric chain hoists (chain hoists) on a hook series EB...

Electric chain hoists (chain hoists) with an push trolley series EB...

Electric chain hoists (chain hoists) with a driven trolley series EB...

Electric chain hoists (chain hoists) with an electric trolley series EB...

Unlike standard rope hoists, electric chain hoists of the EB 0.125-1t series are characterized by a much lower construction height, as well as a lower noise level. Chain hoists of the EB 0.125-1t series have a protection level of IP54, can be stationary or mobile.

Electric chain hoists of the EB 0.125-1t series are equipped with a round-link high-strength calibrated chain, capable of withstanding loads of the designated lifting capacity and have single- and two-speed lifting mechanisms.

We are waiting for your requests for calculating the current price from the manufacturer!
