Chain electric hoists "Skladova Tekhnika" series ВY

Electric chain hoists (chain hoists) of the BY series

Loading capacity: from 1000 kg to 5000 kg;
Lifting height: 3.2 m;
Pulley ratio: 1/1; 2/1; 3/1; 4/1
FEM 9.511 group: 1Am:
Lifting electric motor: with a conical rotor and built-in brake;
Travel electric motor: with a conical or cylindrical rotor;
Lifting speed:
main/micro 8/2 m/min, 5/1.04 m/min, (1/1 pulley)
main/micro 4/2 m/min, 4/0.85 m/min, (2/1 pulley)
main/micro 3/0.65 m/min, (3/1 pulley)
main/micro 2.3/0.5 m/min, (4/1 pulley)
Travel speed: 20 m/min;
Upper suspension: stationary, on the upper hook, on an idle trolley, on a manual trolley, on an electric trolley;
Control: contactor;
Power supply voltage: three-phase -380V/50Hz

connect with us:

Grygorii Gumyniuk

+38 (050) 381-52-70

grigori@gutman.com.ua

Download Price List buy product

Options:

lifting height varies from 3.2 m;
power supply voltage varies from 380V/50Hz;
Electric motor of the travel mechanism with a built-in brake;
various travel speeds;
thermal protection on electric motors;
load capacity limiter;
remote control;
frequency control;
climate zone: normal, tropical.

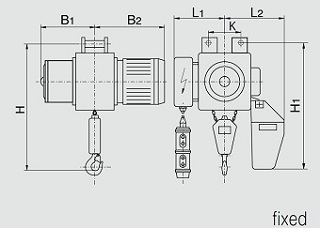

Electric chain hoists (chain hoists) stationary (ВY01… — ВY02…)

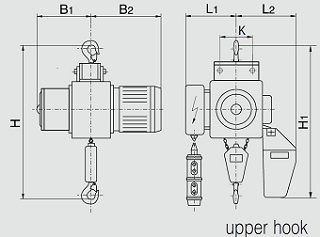

Electric chain hoists (chain hoists) stationary on a hook (ВY03… — ВY04…)

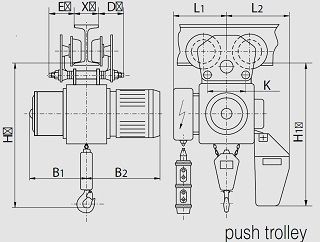

Electric chain hoists (chain hoists) with empty carriage (ВY05… — ВY06…)

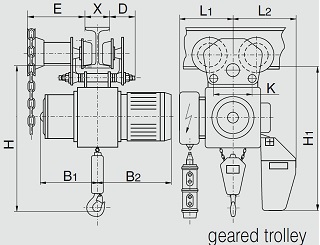

Electric chain hoists (chain hoists) with a drive trolley (ВY07… — BY08…)

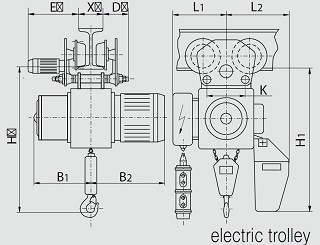

Electric chain hoists (chain hoists) with an electric trolley (ВY09… — ВY10…)

Electric chain hoists of the BY series with a lifting capacity of 1-5t

Electric chain hoists of the BY 1-5T series are designed to work with heavy loads: the maximum lifting capacity of this type of hoist is 5 tons. The unique design of the 1-5T chain hoist requires minimal effort to lift loads to a height or move loads horizontally, while this equipment is durable even with regular and intensive use.
