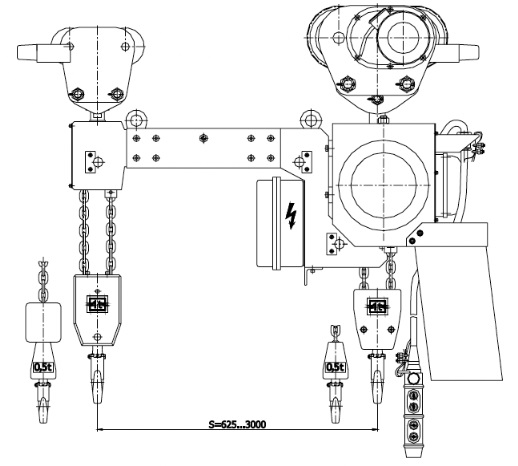

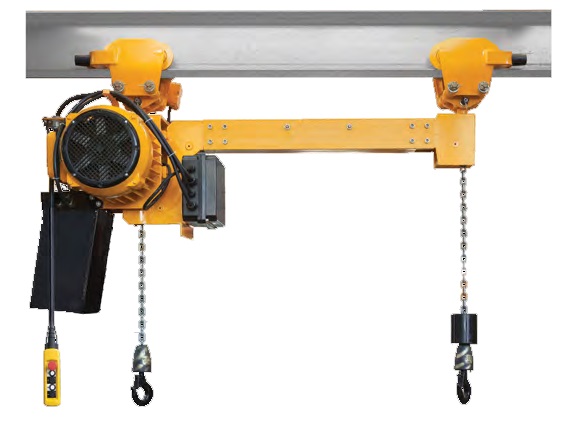

Chain electric hoists "Skladova Tekhnika" series BDH

Electric chain hoists (chain hoists) series BDH

• Loading capacity: 500+500 kg; 1000+1000 kg;
• Lifting height:
• maximum 24 m (polyspast 1/1);
• maximum 12 m (polyspast 2/1);
• Polyspast multiplicity: 1/1; 2/1
• Group according to FEM 9.511:1Am:
• Lifting electric motor: with a conical rotor and a built-in brake;
• Travel electric motor: with a conical or cylindrical rotor;
• Lifting speed:
• main/micro 8/2 m/min, (polyspast 1/1)
• main/micro 4/1 m/min, (polyspast 2/1)
• Travel speed: 20 m/min;
• Upper suspension: on an electric trolley;
• Control: contactor;
• Power supply voltage: three-phase -380V/50Hz
