Rope electric hoist TOR, type LHE

Electric rope hoist TOR, type LHE

Electric rope hoist LHE is a modern professional lifting equipment (telpher).

Name	Carrying capacity	Lifting height	Lifting speed	Operating voltage	Engine power	Weight	I-beam width
	t	m	m/sec	w	kW	kg	mm
LHE-2	2	6-18	5/0,8	380	3,2/0,45	360	150-300
LHE-3,2	3,2	6-18	5/0,8	380	3,2/0,45	428	150-300
LHE-5	5	6-18	5/0,8	380	6,1/1	516	200-350
LHE-10	10	6-18	4/0,6	380	9,5/1,5	978	200-410
LHE-20	20	6-18	4/0,6	380	16/2,6	1406	300-450

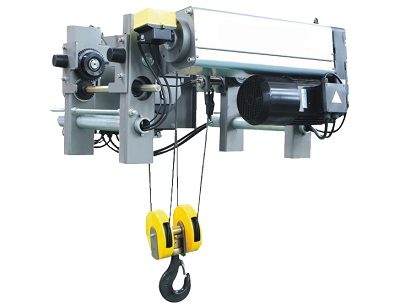

Electric rope hoist LHE

It has two speeds for lifting loads, which allows you to work with loads that require especially careful handling, and, thanks to the special design of the body (there is no external trolley), it has a reduced building height. Power supply - 380 V. Advantages: very high quality workmanship, reduced building height, 2 speeds of ascent/descent, components (including motor) made in Germany are used, minimum welds, high reliability, durability, high performance, versatility of application.
