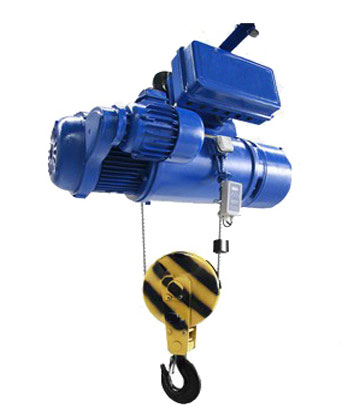

Rope electric hoist TOR, type MD

Electric rope hoist MD two-speed

Electric rope hoist MD – professional lifting equipment (telpher). Power supply – 380 V.

Name	Carrying capacity	Lifting height	Lifting speed	Operating voltage	Engine power	Weight	I-beam width
	t	m	m/c	В	kW	kg	m
MD-0,5	0,5	6-12	8/0,8	380	0,8/0,2	210	18М-30М
MD-1	1	6-30	8/0,8	380	1,5/0,2	220	18М-30М
MD-2	2	6-30	8/0,8	380	3,0/0,4	395	24М-40М
MD-3,2	3,2	6-30	8/0,8	380	4,5/0,4	465	24М-40М
MD-5	5	6-30	8/0,8	380	7,5/0,8	705	36М-45М
MD-10	10	6-30	7/0,6	380	13,0/1,5	1407	36М-45М
MD-15	15	9-18	3,5/0,35	380	13,0/1,5	1788	45М
MD-20	20	12-16	3,3/0,33	380	13,0/1,5	12600	45М

It differs from the CD1 model in that it has two speeds for lifting/lowering loads (normal and low), which allows you to work with loads that require especially careful handling. It is used to equip beam, console and gantry cranes. Advantages of MD hoists: presence of 2 speeds of ascent/lower, high reliability, durability, good performance, versatility of use, low price compared to analogues. The MD hoist is equipped with a trolley (carriage) with an electric drive, which allows it to be mounted on an I-beam of the corresponding number and move the hoist and load in a horizontal plane. Hoists with high rope capacity of the drum are equipped with additional non-driven trolleys.
