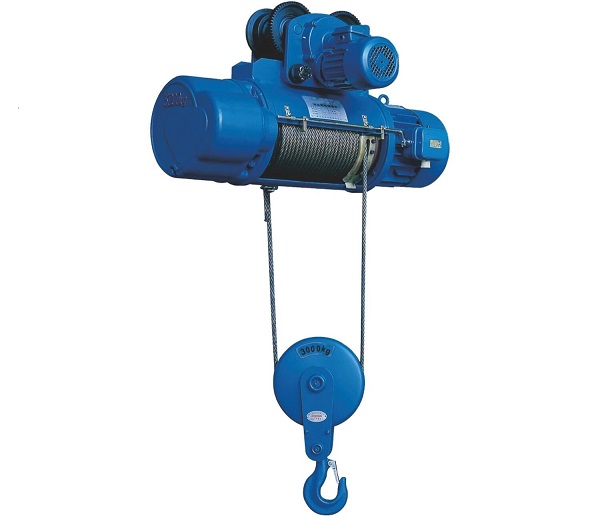

Rope electric hoist TOR, type CD1

Electric rope hoist CD 1

Electric rope hoist CD1 – professional lifting equipment (telpher). Power supply – 380 V. Widely used to equip beam, console and gantry cranes.

Download Price List buy product

Name	Г/п	Lifting height	Lifting speed	Operating voltage	Engine power	Weight	I-beam width
	т	m	m/sec	В	kW	kg	mm
CD1-0,5t	0,5	6-12	8	380	0,8	130	18М-30М
CD1-1t	1	6-36	8	380	1,5	236	18М-30М
CD1-2t	2	6-36	8	380	3,0	374	24М-40М
CD1-3,2t	3,2	6-36	8	380	4,5	482	24М-40М
CD1-5t	5	6-36	8	380	7,5	766	36М-45М
CD1-10t	10	12-36	7	380	13,0	1317	36М-45М
CD1-16t	16	12-30	3,5	380	13,0	1750	45М
CD1-20t	20	12-30	3,3	380	13,0	1880	45М

Advantages of CD hoists: high reliability, durability, good performance, versatility of use, low price compared to analogues. Available in two versions: stationary and mobile. The mobile hoist CD1 is equipped with a trolley (carriage) with an electric drive, which allows it to be mounted on an I-beam of the corresponding number and move the hoist and load in a horizontal plane. Hoists with high rope capacity of the drum are equipped with additional non-driven trolleys.
