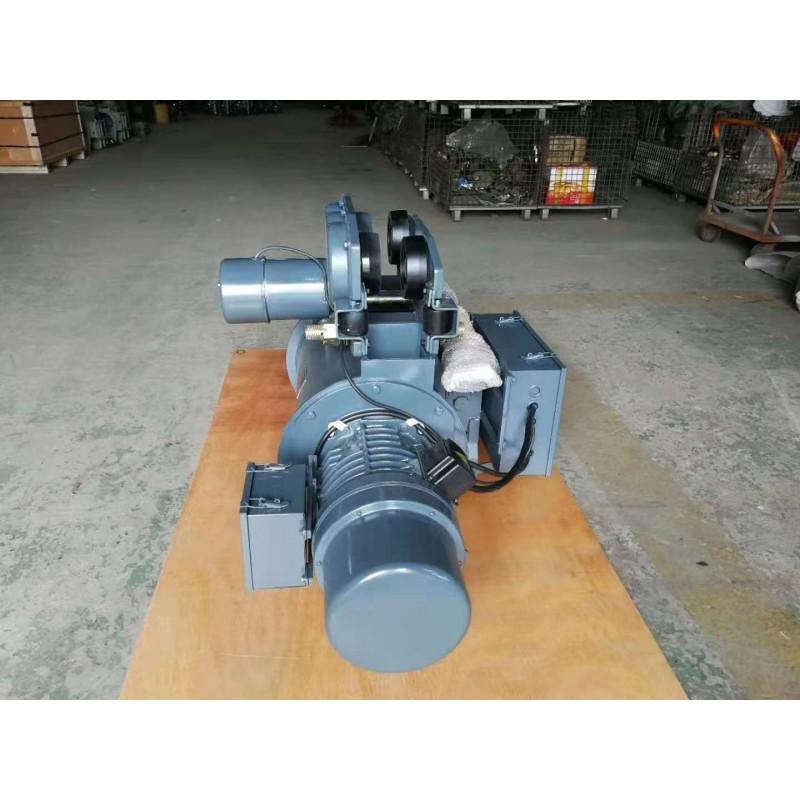

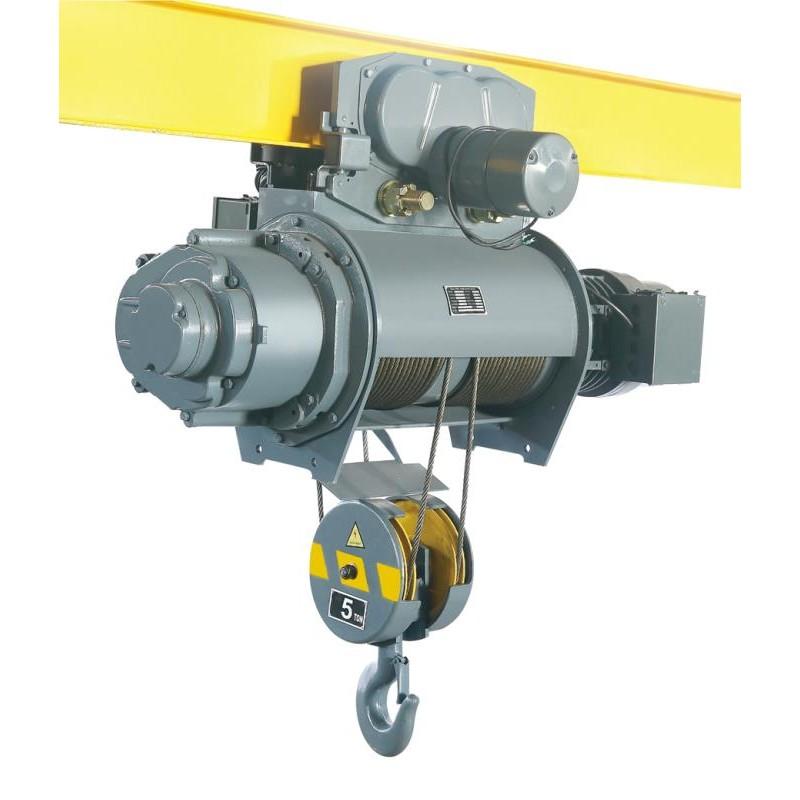

Rope electric hoist TOR, type SH

Hoist/Electric rope winch TOR, type SH 1ТХ6М, 380V

Load capacity 1t, 2t, 3t, 5t, 10t

The SH electric hoist is a reliable, modern professional hoist that uses a cable to lift loads. The standard SH version is equipped with an electric trolley, so it can be mounted on an I-beam with the corresponding number and move the lift and loads horizontally.

Download Price List buy product

Technical data:

Load capacity 1t, 2t, 3t, 5t, 10t
Lifting height: from 6 m to 12 m.
Operating temperature range °C: -20/+40
Operating humidity range%: max. 85
Protection degree: IP54
Noise level dB: 75
Rope diameter: 8 mm
Lifting speed 11/13 m/min
Operating voltage 200-600V / 3 phases 50/60 Hz
Engine power 2.5 kW, type 1M6
I-beam width 100-150 mm
Remote control on a 4.5 m cable
Weight: 175 kg
