Hydraulic Chain Hoist, JDN Profi TI

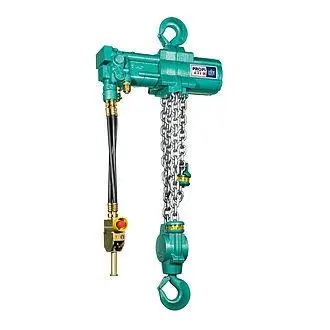

JDN Profi TI Hydraulic Hook Suspension Chain Hoist - Range 3,000 to 100,000 kg

JDN hydraulic lifting devices and mechanisms have a lifting capacity from 3t to 100t.

Depending on the size of the motor, the hoists and mechanisms operate at an inlet pressure of 130 to 180 bar.
Hydraulic fluid: Oil.

Hydraulic lifting devices and mechanisms can be used as an alternative to pneumatic ones wherever there are hydraulic piping, central hydraulic units or hydraulic units.

connect with us:

Grygorii Gumyniuk

+38 (050) 381-52-70

grigori@gutman.com.ua

Download Price List buy product

As an alternative to the pneumatic drive, you can get JDN hydraulic hoists up to 100 tons.

Explosion classification:
Ex II 2G Ex h IIA T4 Gb X
Ex II 2D Ex h IIIA T130°C Db X

Advantages

Possibility of use in explosive areas.
Doesn't make much noise.
Sturdy, enclosed motor on gears.
Built-in overload shutdown.
Only two supply valves on the lifting device ("P" and "T"), oil leakage is drained from the inside.
The drive is enclosed in a hermetically sealed housing to protect it from environmental influences.
