Traction Mounting Mechanism Supertirfor™ TU-16H & TU-32H

The TU-H tirfor^® hoists are mechanically powered by a hydraulic cylinder using an electric or petrol powerpack.
The TU-H adds flexibility to the operator particularly during extensive heavy-duty usage and movement of loads over long distances.

Areas of application: maritime, building and industry, portable and flexible for use anywhere.

connect with us:

Ірина Лещьотна

+38 (095) 278-75-77 (приймальня)

irina@gutman.com.ua

Download Price List buy product

Model	load capacity	Length of cable	Cable diameter	Max travel weight	Cable weight
	кг	м	мм	кг	кг/м
Tirfor® TU 8	800	20	8.3	1200	0.29
Tirfor® TU 16	1600	20	11.5	2400	0.53
Tirfor® TU 32	3200	20	16.3	4000	1.00

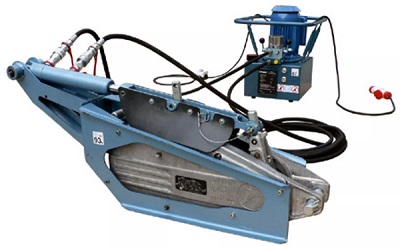

The complete set consists of a hydraulic powerpack, a 3 m long hose set with quick coupling and a tirfor^® hoist with frame and cylinder.

TU-16H: The 1-way system is suitable for loads up to 1600kg. It can be expanded into a 4-way system which is suitable for loads up to 4 x 1600 kg.

TU-32H: The 1-way system is suitable for loads up to 3200kg. It can be expanded into a 4-way system which is suitable for loads up to 4 x 3200 kg.

Delivering safe and assured operation in any direction, either in a straight line or using diverter pulleys over an unlimited length
Low-wear clamping jaws during demanding applications increasing the life of the wire rope
Overload protection for safe and secure operation
Fast and easy to install and use
Working load can be increased by using sheave blocks
Positioning loads with millimetre accuracy
Secure release system
