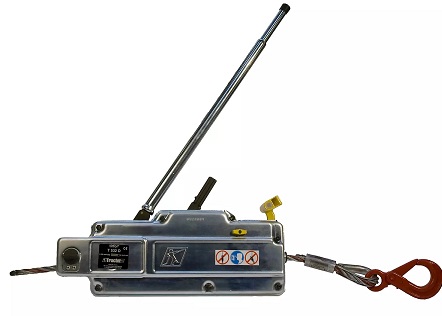

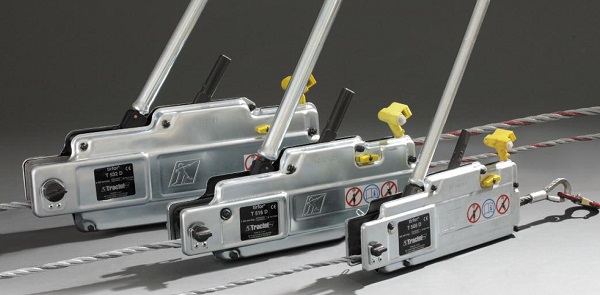

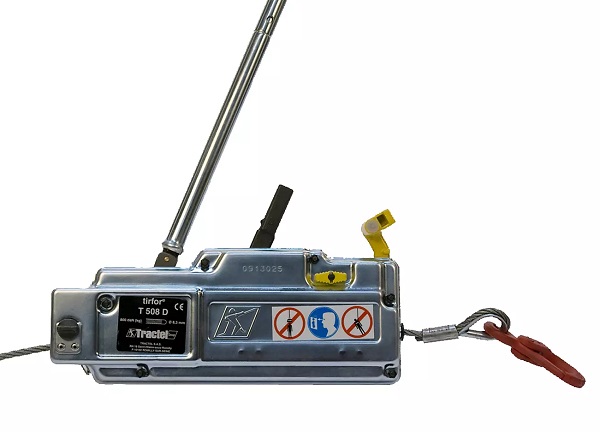

Mounting pull mechanism Tirfor® T series

The Tirfor® T-series traction assembly mechanism is a premium class MTM from the French manufacturer of lifting equipment Tractel®.

Universal and portable hand winch Tirfor® series T - for lifting, tensioning and positioning loads.

connect with us:

²ðèíà Ëåùüîòíà

+38 (095) 278-75-77 (ïðèéìàëüíÿ)

irina@gutman.com.ua

Modelload capacityLength of cableCable diameterMax travel weightCable weight
êãìììêãêã/ì
Tirfor® TU 8800208.312000.29
Tirfor® TU 1616002011.524000.53
Tirfor® TU 3232002016.340001.00

One of the flagship products of the French company Tractel® - tirfor® - is known throughout the world as the BEST MOUNTING AND TRACTION MECHANISM (MTM), which is sometimes also called a “frog”, capable of working in any position, at any lifting height with an unlimited length of rope and in any conditions. Tirfor® is safe, reliable and effective. Best suited for long climbs where high reliability and increased load capacity are required. The winch is easy to mount, has overload protection and requires less effort than other installation and traction mechanisms.



Tirfor® is particularly well suited for rescue operations. Fire rescue teams around the world rely on tirfor® to safely retrieve stuck vehicles or move heavy equipment causing unsafe conditions. Tirfor® can be operated by one person and is easy to install and use. It is also a reliable tool for tree removal in agricultural environments.



Tirfor® is one of the most versatile Tractel® products available in materials handling and people handling models. It can be used in lifting work platforms or overhead platforms, pulling cables, erecting steel silos, loading or unloading heavy equipment, erecting escalators, installing transformers, raising and lowering tents, and inspecting and maintaining various structures. When used in conjunction with a dynafor™ dynamometer, this is the ideal solution for anchor point force control.

MTM tirfor® TU - can be used for lifting, lowering, tensioning and securing loads in all directions.

Operation - by one person using the telescopic arm supplied as standard. Spare shear pins for overload protection are also supplied as standard.


■ Lightweight and portable for use anywhere
■ TU series is FULLY compliant with EN13157
■ Provides safe and reliable operation in any direction, either in a straight line or using tap-off blocks over an unlimited length
■ Wear-resistant clamping jaws during heavy work increase the life of the rope
■ Overload protection for safe and reliable operation
■ Quick and easy installation and use
■ Working capacity can be increased with capacity doubling blocks
■ Load positioning with millimeter precision
■ Safety cable release system
■ Load capacity: 800/1600/3200 kg
■ Full range of accessories available - sheaves, pulleys, anchors and cable spools.

  • Tirfor TU 8.pdf download ( pdf, 93 Kb ) »

  • Tirfor TU16.pdf download ( pdf, 94 Kb ) »

  • Tirfor TU32.pdf download ( pdf, 88 Kb ) »

  • Manual Tirfor (T, TU) 2019 download ( pdf, 3816 Kb ) »
