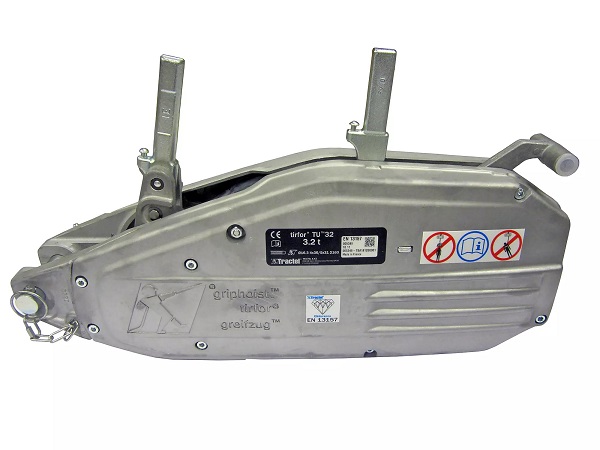

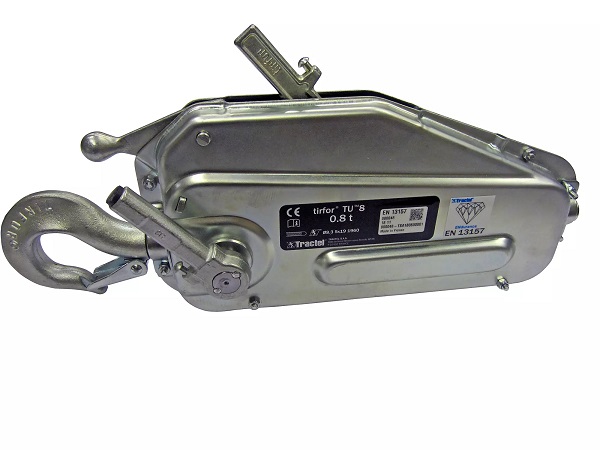

Mounting traction mechanism Tirfor® TU series

The tirfor® TU series is developed for daily heavy-duty applications under the most extreme circumstances.
The tirfor® TU hoist is a versatile and portable multi-purpose manual hoist for lifting, pulling and positioning device.

It can be used for lifting and pulling, but also for lowering, tensioning and securing loads in all directions.

One-man operation by using the telescopic control lever supplied as standard. Spare shear    pins for overload protection are supplied as standard.

connect with us:

²ðèíà Ëåùüîòíà

+38 (095) 278-75-77 (ïðèéìàëüíÿ)

irina@gutman.com.ua

Modelload capacityLength of cableCable diameterMax travel weightCable weight
êãìììêãêã/ì
Tirfor® TU 8800208.312000.29
Tirfor® TU 1616002011.524000.53
Tirfor® TU 3232002016.340001.00

One of the flagship products of the French company Tractel® - tirfor® - is known throughout the world as the BEST MOUNTING AND TRACTION MECHANISM (MTM), which is sometimes also called a “frog”, capable of working in any position, at any lifting height with an unlimited length of rope and in any conditions. Tirfor® is safe, reliable and effective. Best suited for long climbs where high reliability and increased load capacity are required. The winch is easy to mount, has overload protection and requires less effort than other installation and traction mechanisms.



Tirfor® is particularly well suited for rescue operations. Fire rescue teams around the world rely on tirfor® to safely retrieve stuck vehicles or move heavy equipment causing unsafe conditions. Tirfor® can be operated by one person and is easy to install and use. It is also a reliable tool for tree removal in agricultural environments.



Tirfor® is one of the most versatile Tractel® products available in materials handling and people handling models. It can be used in lifting work platforms or overhead platforms, pulling cables, erecting steel silos, loading or unloading heavy equipment, erecting escalators, installing transformers, raising and lowering tents, and inspecting and maintaining various structures. When used in conjunction with a dynafor™ dynamometer, this is the ideal solution for anchor point force control.



Proven quality for decades, brand name and market leader – often copied never equaled

■    Lightweight and easily portable for use anywhere
■    TU range EN13157 FULLY compliant
■    Delivering safe and assured operation in any direction, either in a straight line or using diverter pulleys over an unlimited length
■    Low-wear clamping jaws during demanding applications increasing the life of the wire rope
■    Overload protection for safe and secure operation
■    Fast and easy to install and use
■    Working load can be increased by using sheave blocks
■    Positioning loads with millimetre accuracy
■    Secure release system
■    Load capacity from 800 - 3200 kg
■    Full range of accessories are available – sheave blocks, diverter pulleys, ground anchors and reelers



  • Òåõíè÷åñêèå õàðàêòåðèñòèêè Tirfor TU 8.pdf download ( pdf, 93 Kb ) »

  • Òåõíè÷åñêèå õàðàêòåðèñòèêè Tirfor TU16.pdf download ( pdf, 94 Kb ) »

  • Òåõíè÷åñêèå õàðàêòåðèñòèêè Tirfor TU32.pdf download ( pdf, 88 Kb ) »

  • Èíñòðóêöèÿ Tirfor (T, TU) 2019 download ( pdf, 3816 Kb ) »
