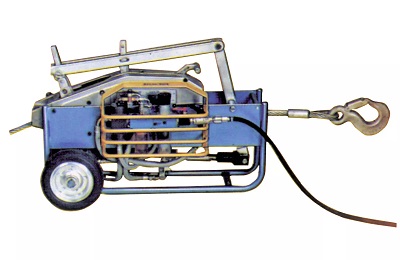

Mounting traction mechanism Pneumatic Supertirfor™ TU-16A and TU-32A

The tirfor^® TU-A16 and TU-A32 can be motorized by a pneumatic system powered by an onsite or portable air supply and is operated by a standard control unit.

The tirfor^® TU-A series adds flexibility to the operator particularly during extensive heavy-duty usage and movement of loads over long distances.

connect with us:

Ірина Лещьотна

+38 (095) 278-75-77 (приймальня)

irina@gutman.com.ua

Download Price List buy product

Model	load capacity	Length of cable	Диаметр кабеля	Max travel weight	Cable weight
	kg	m	mm	kg	kg/m
Tirfor® TU 16	1600	20	11.5	2400	0.53
Tirfor® TU 32	3200	20	16.3	4000	1.00

If the air pressure is lost, the tirfor^® can also be disconnected from the motorizing linkage and operated manually.

■   Delivering safe and assured operation in any direction, either in a straight line or using diverter pulleys over an unlimited length
■   Low-wear clamping jaws during demanding applications increasing the life of the wire rope
■   Overload protection for safe and secure operation
■   Fast and easy to install and use
■   Working load can be increased by using sheave blocks
■   Positioning loads with millimetre accuracy
■   Secure release system
■   Load capacity from 1600kg - 3200 kg
