Suitable for customized load handling solutions, including load rotation or vacuum gripping and/or specialized controls.

Models are available with load capacities from 80 to 320 kg, including end effectors. Suitable for various supports, such as a column with an orbital handle, ceiling, overhead rail, and overhead crane systems, including Liftruck.
The Liftronic® Pro series manipulators are advanced industrial manipulators that belong to the INDEVA® (Intelligent Assistance Devices) class. INDEVA® (or IAD – Intelligent Assistance Devices) are zero-gravity electronic balancers that represent a new ergonomic solution in material handling, addressing today's pressing need for increased productivity and safety.

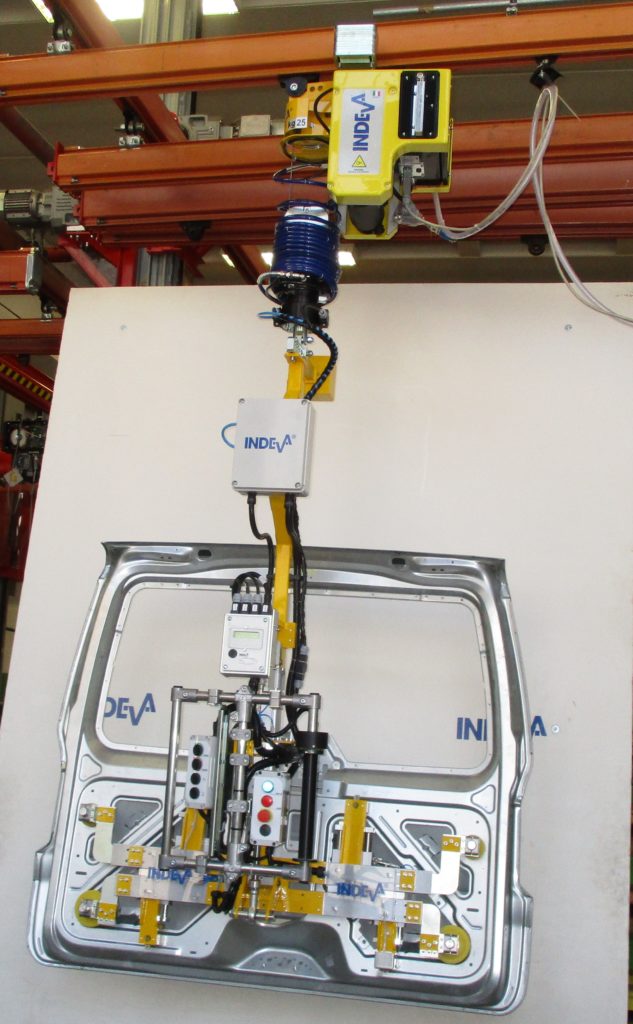

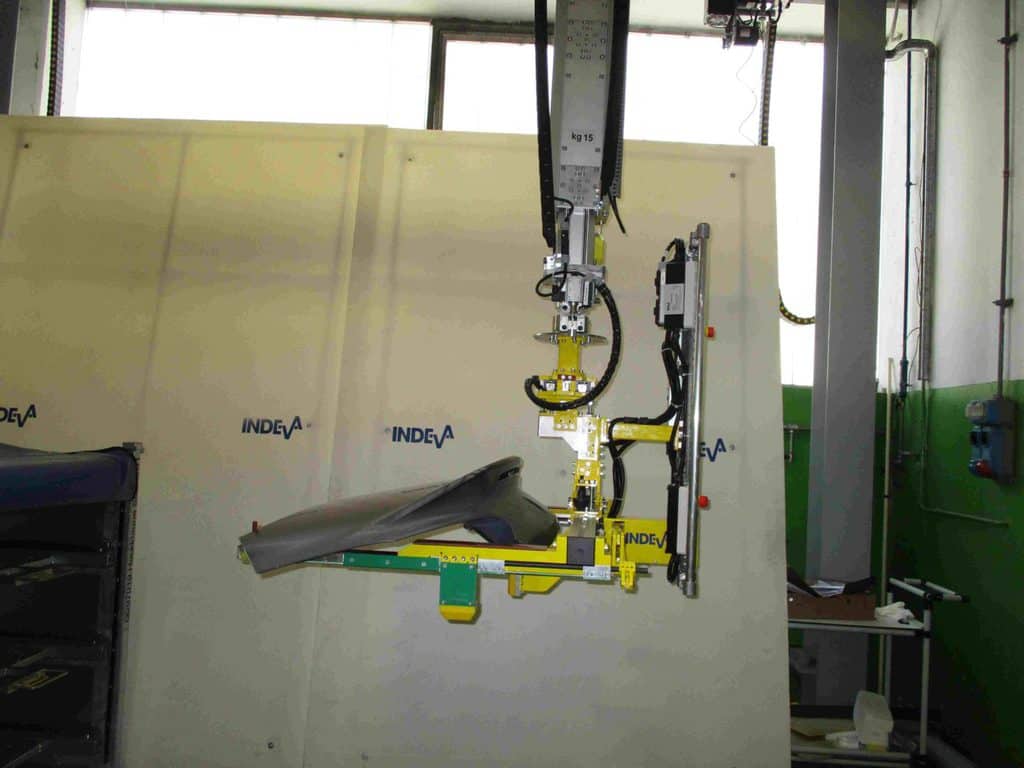

ORBITAL TOOLING HEAD AND GRIPPERS:

Thanks to our modular "MODULO" end effector concept and microprocessor-based logic, we can design and manufacture tooling heads and grippers that meet the precise requirements of our customers across all industries. The intelligent and consistent industrialization process of our end effectors ensures proven reliability and efficiency for both custom and standard end effectors.

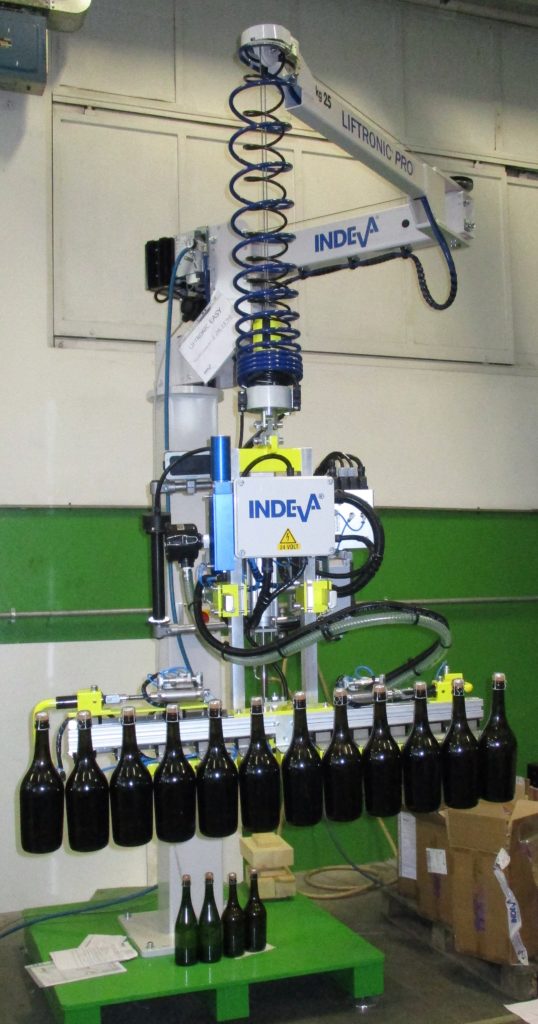

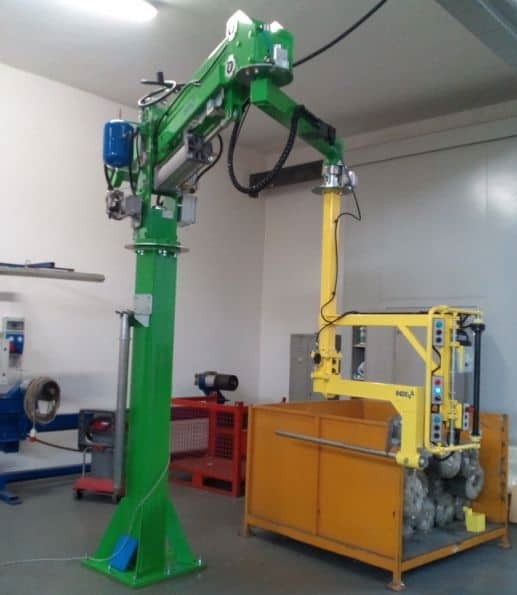

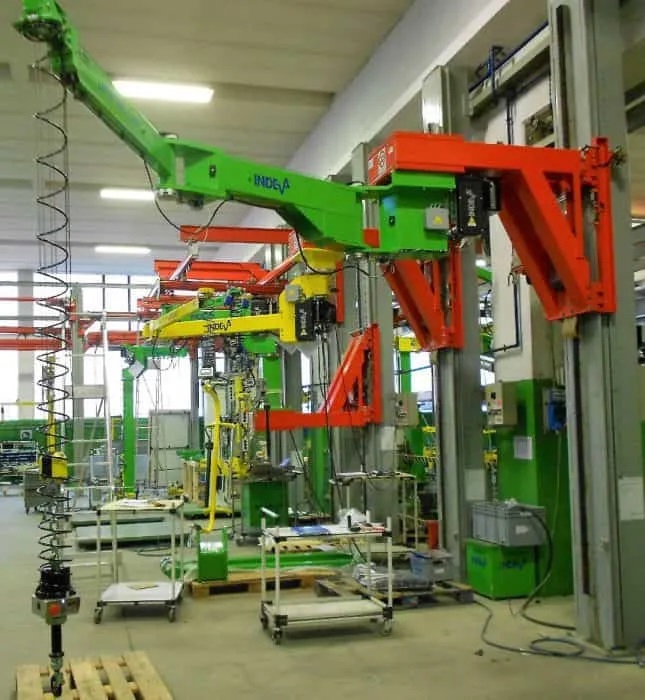

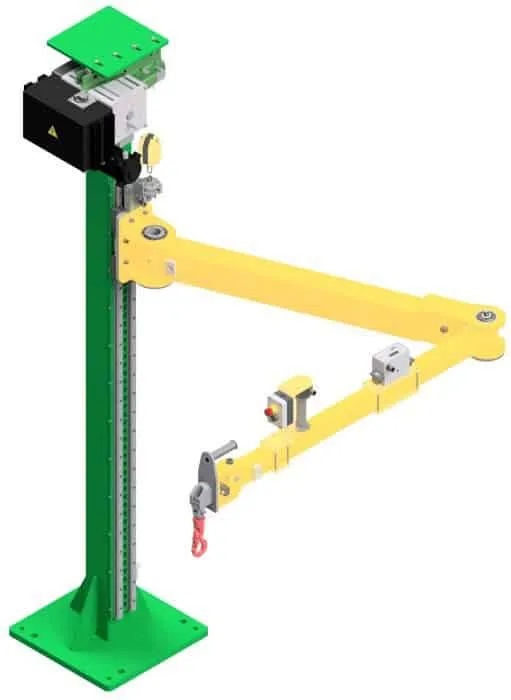

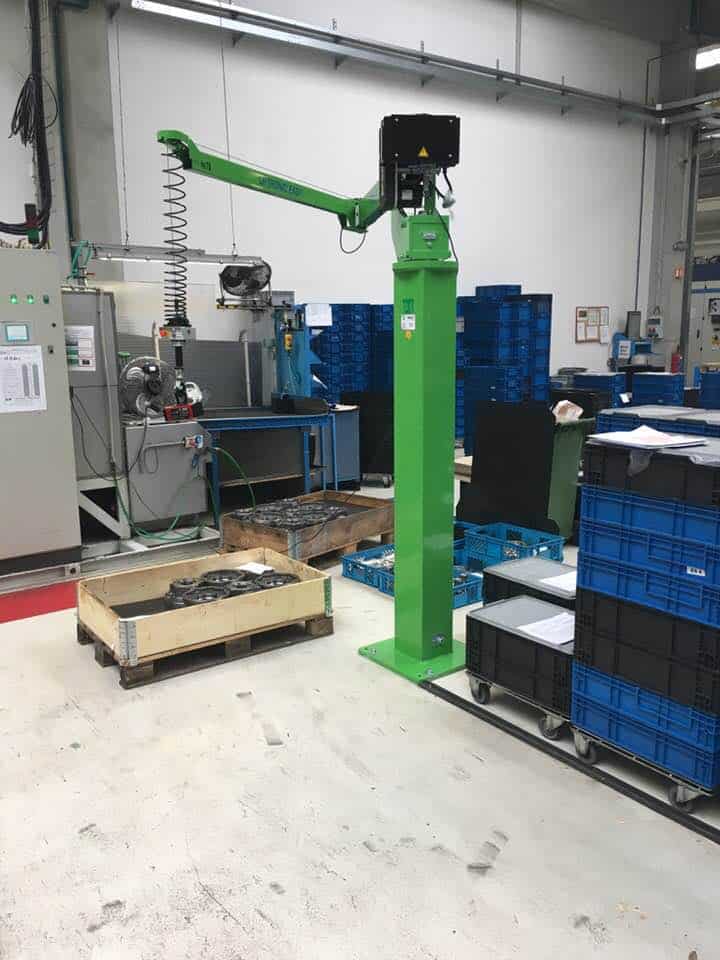

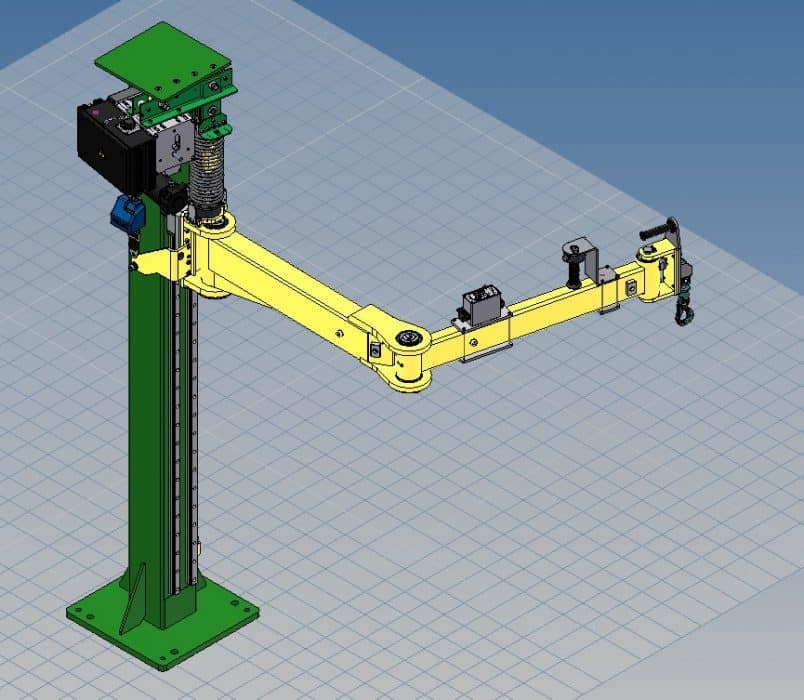

Manipulator INDEVA® Liftronic® Pro column mounted with articulated arm

MAIN FEATURES

• Auto-weight sense and auto-balancing
• Can be integrated with App-Indeva and INDEVA® Gateway
• Unparalleled safety
• Ergonomic design
• Bespoke gripping devices
• Compact and light
• Fast, responsive and precise
• Low carbon footprint

TECHNICAL DATA
Max. gross capacity: from 80 to 320kg (weight of lifting tool included)
Power supply: 110/230 V-AC – 50/60 Hz
Power consumption: max 700 VA
Vertical stroke: up to 2.80m

JOINTED ARM SPECIFICATIONS

TECHNICAL DATA SHEET

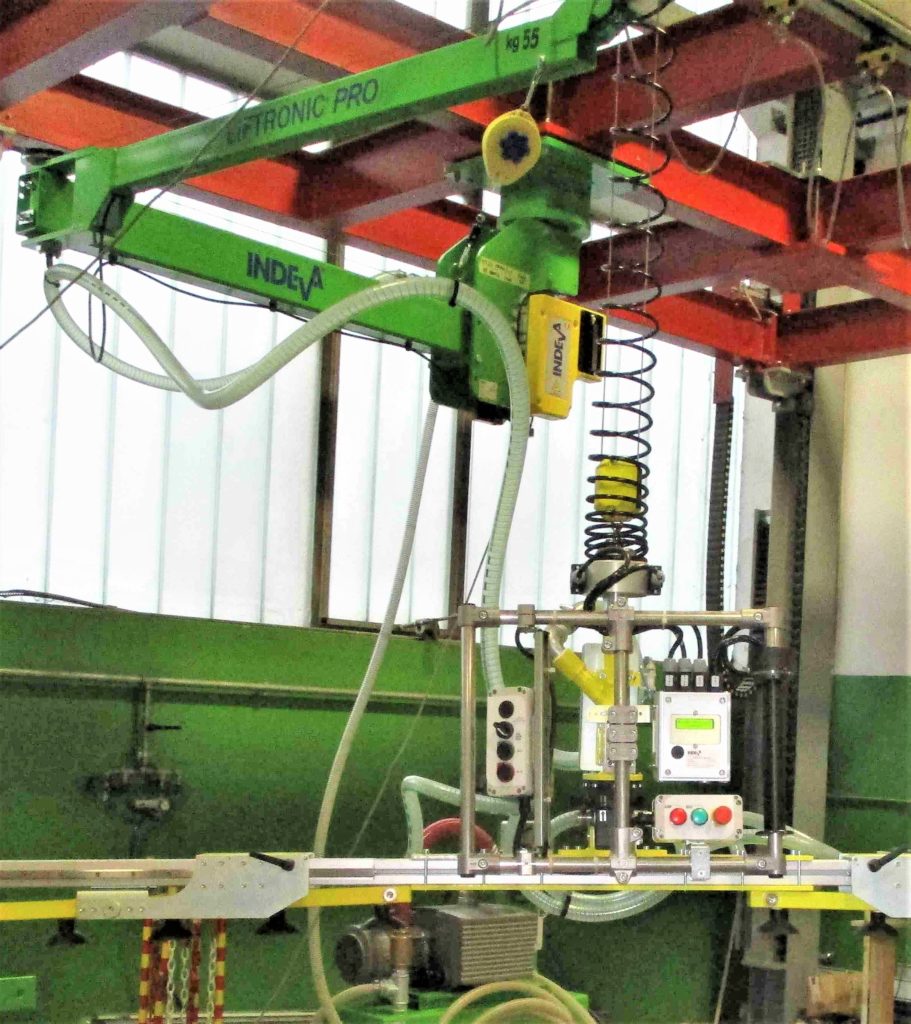

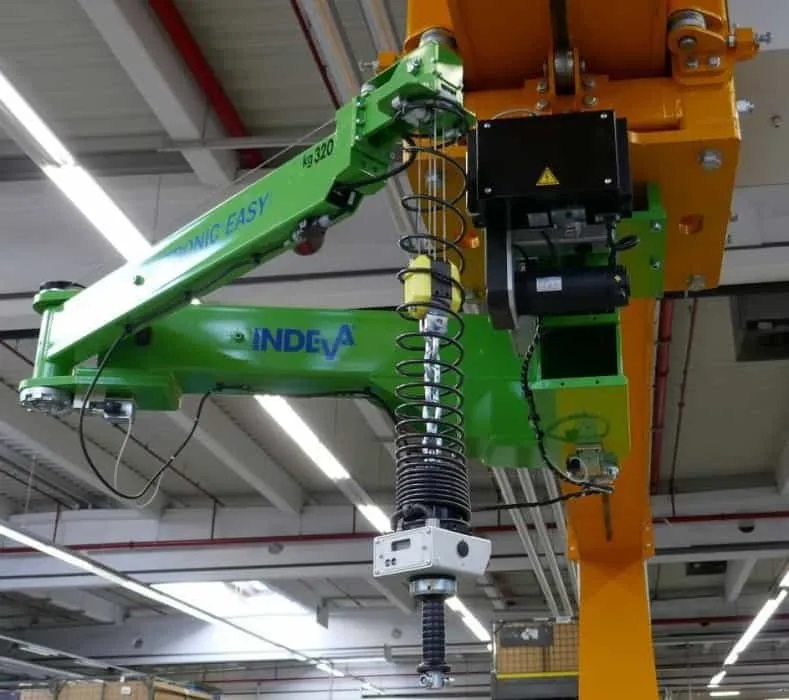

Liftronic ® Pro может поставляться с шарнирным рычагом, закрепленным на потолке или на потолочных направляющих.

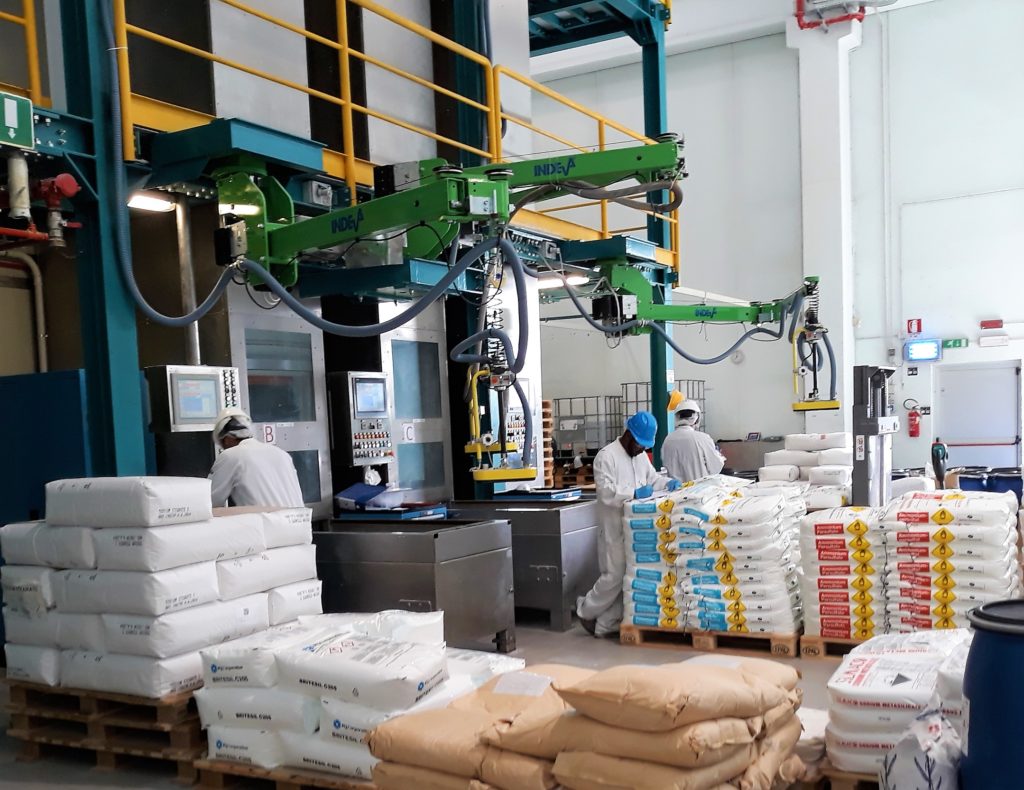

INDEVA ® Liftronic ® Pro с шарнирным рычагом , устанавливаемым на потолке или на подвесной рельсе . Это решение подходит, когда нет возможности использовать пространство на полу для установки на колонну или необходимо охватить большую площадь.
Фотогалерея Потолочная консоль Liftronic ® Pro:

ОСНОВНЫЕ ХАРАКТЕРИСТИКИ
• Автоматическое определение веса и автоматическая балансировка
• Возможность интеграции с App-Indeva и INDEVA ® Gateway
• Непревзойденная безопасность
• Эргономичный дизайн
• Индивидуально разработанные захватные устройства
• Компактный и легкий
• Быстрый, отзывчивый и точный
• Низкий углеродный след

ТЕХНИЧЕСКИЕ ДАННЫЕ
Макс. общая грузоподъемность: от 80 до 320 кг (включая вес подъемного инструмента)
Электропитание: 110/230 В переменного тока – 50/60 Гц
Потребляемая мощность: макс. 700 ВА
Вертикальный ход: до 2,80 м

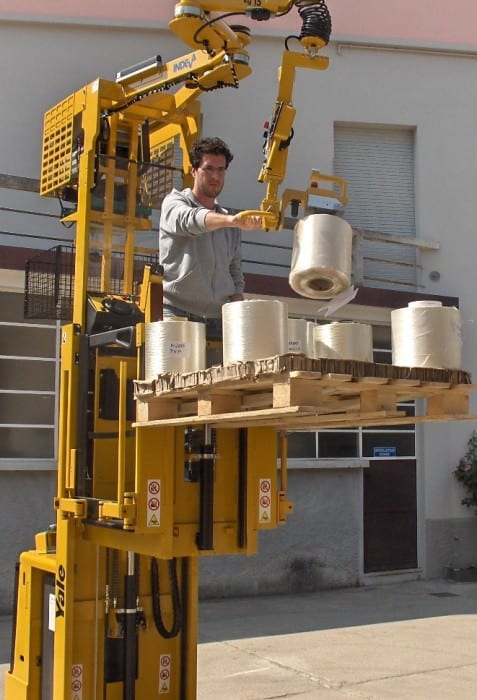

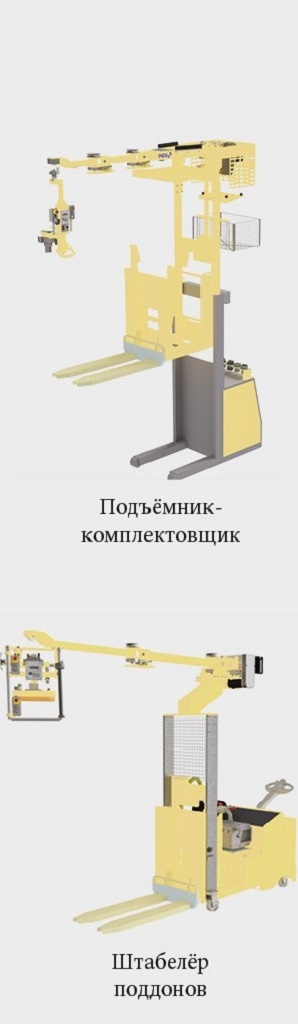

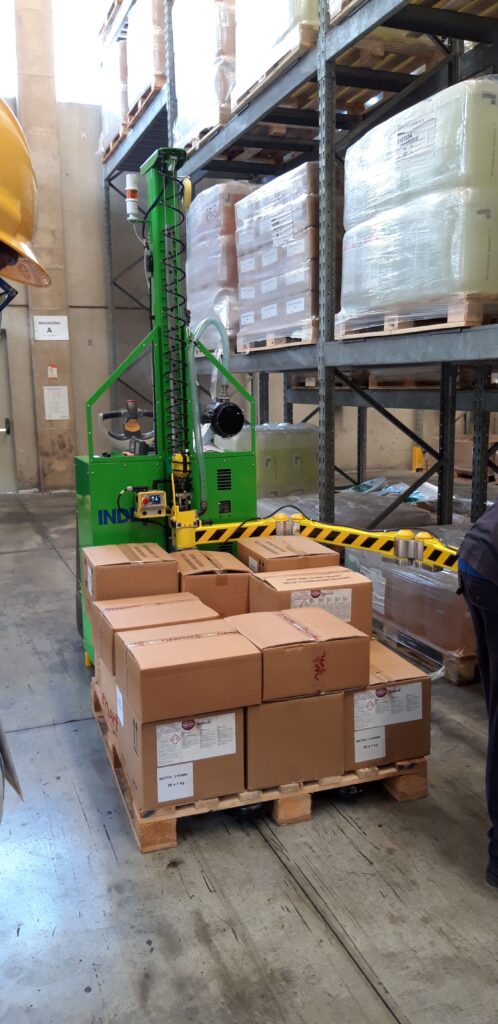

INDEVA® Liftruck is an industrial manipulator that includes an order picker to carry the pallet with reels, an INDEVA® Liftronic® with articulated arm and an orbital tool head for handling reels. Necessary within the textile industry in the texturizing, spinning and weaving areas to load creels up to 5 m high with reels of max 40 kg . A single man can carry out the whole work cycle: collect pallets in the stock room and carry them up to the creel, place the spools on the creel prior 90° rotation, collect and carry all the tubes and partition carton blanks. The operator can quickly and precisely pick and release the reels, by means of the orbital tool head with expanding chuck . The release is allowed only when the reel is safely placed on the pin. The electronic balancer INDEVA® grants a smooth, quick and precise reel handling.An INDEVA® Liftruck can be used also for handling cardboard cases by means of a vacuum gripper.

Main features

Max capacity: 50 kg
Max vertical stroke: max 3000 mm
Max lifting speed: 0,6 m/sec
Control: electronic – 24 Volt D.C.
Power consumption: 700 VA
Jointed Arm : Orbit-Arm®- possibility of custom arm lengths.
Gripping tool with orbital tool head and expanding chuck: equipped with reel barycentre adjust device and quick coupling device for quick chuck replacement allowing to handle reels with diameters ranging from 70 to 150 mm .
It is possible to use a vacuum gripper as end effector for handling cardboard cases.
Control panel: it comprises a direction indicator, a battery charge indicator, a steering wheel, control handle for back/forward moves, emergency stop.
Safety devices: a failsafe mechanic lock is triggered in the case of a power shortage and a brake limits the lowering speed of the motor.

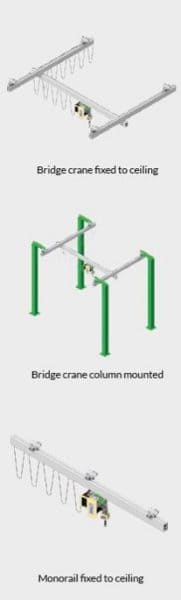

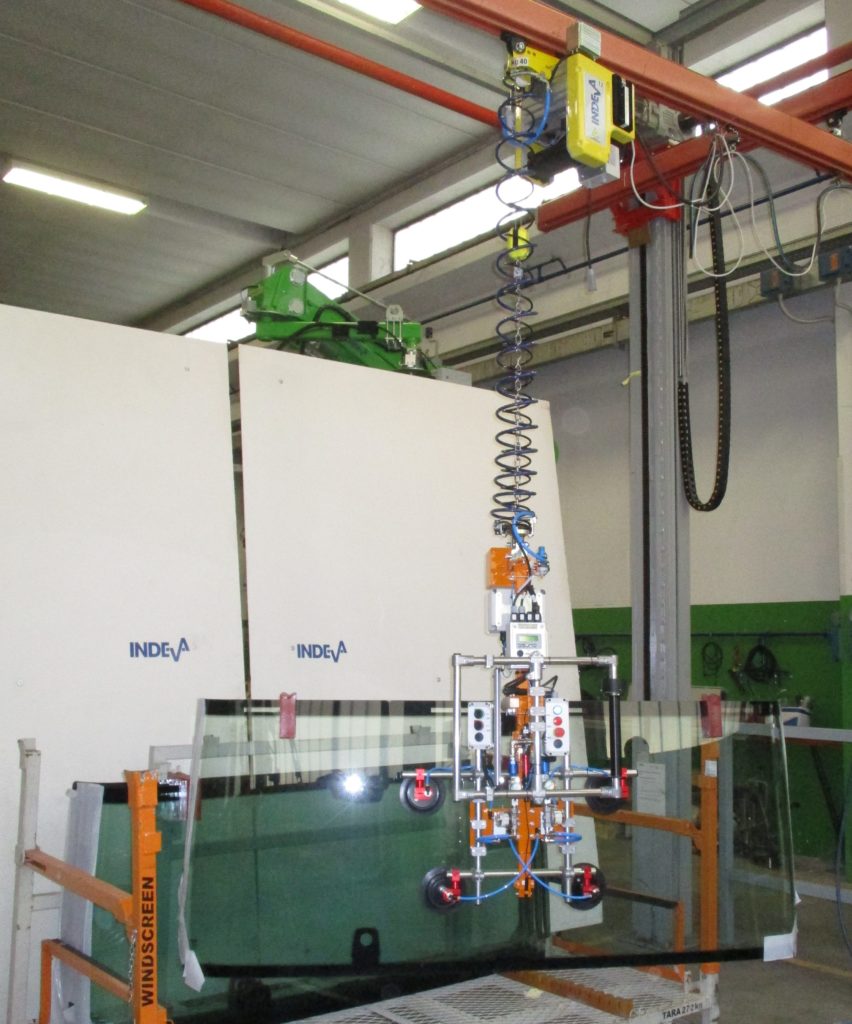

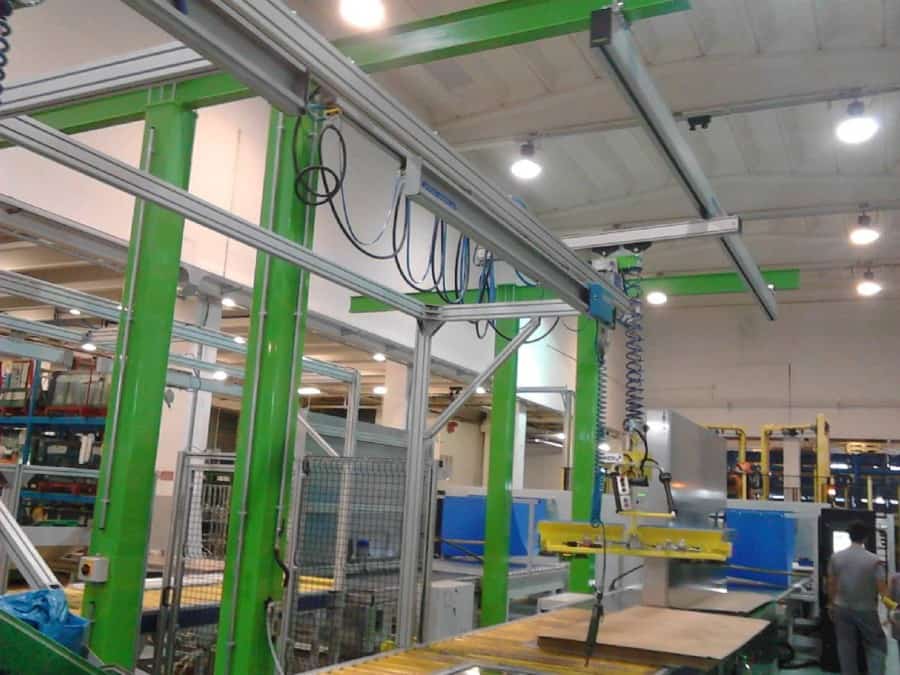

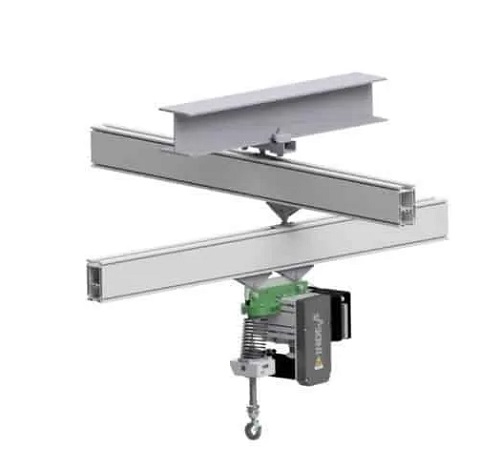

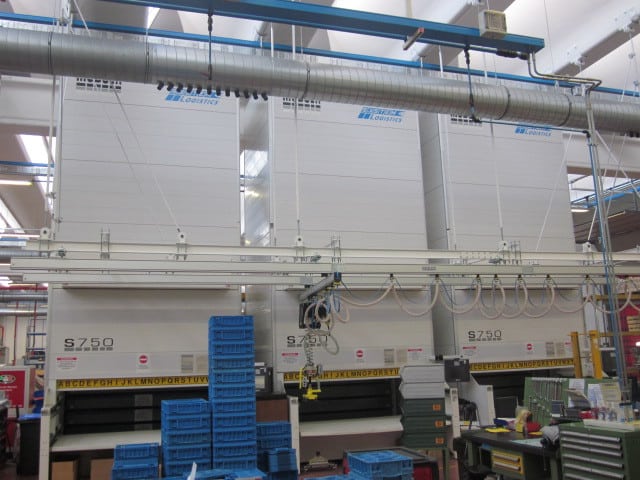

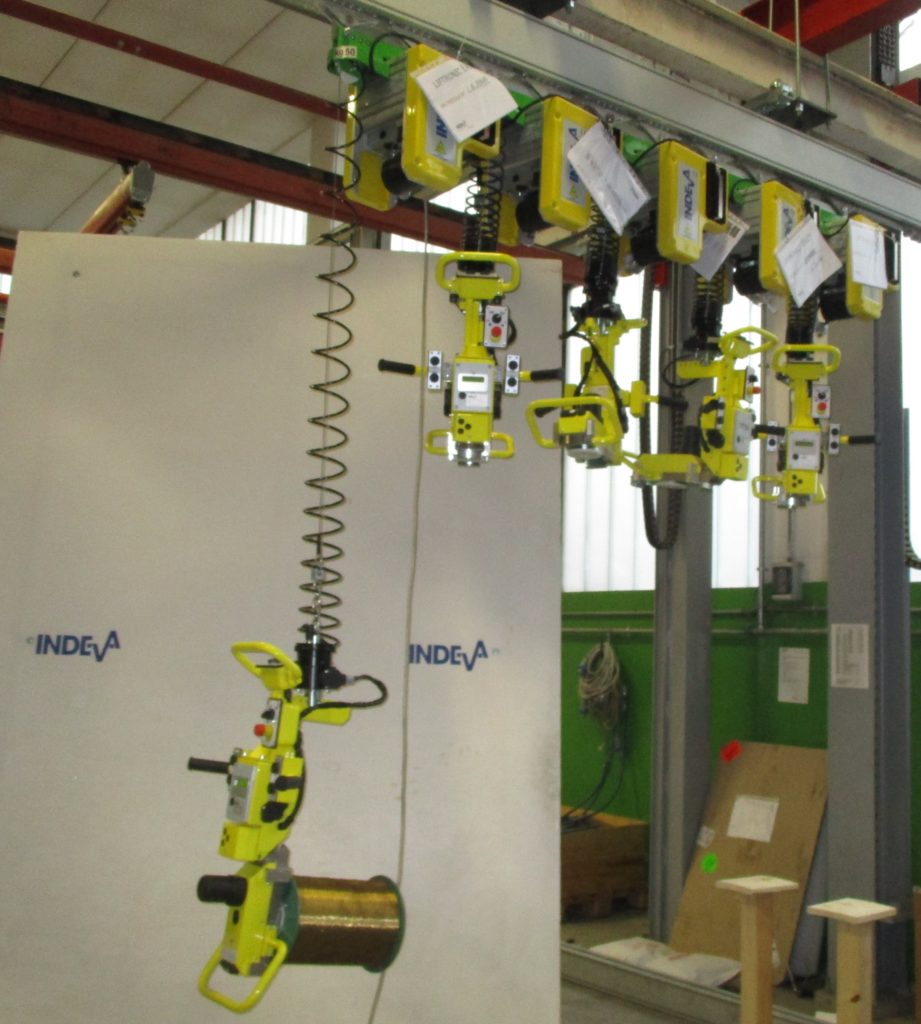

A rail mounted model Liftronic® slides along overhead bridge mounted rails. It is suitable for covering a large work area.

Main features

• Auto-weight sense and auto-balancing
• Can be integrated with App-Indeva and INDEVA® Gateway
• Unparalleled safety
• Ergonomic design
• Bespoke gripping devices
• Compact and light
• Fast, responsive and precise
• Low carbon footprint

TECHNICAL DATA
Max. gross capacity: from 80 to 320kg (weight of lifting tool included)
Power supply: 110/230 V-AC – 50/60 Hz
Power consumption: max 700 VA
Vertical stroke: up to 2.80m

TECHNICAL DATA SHEET

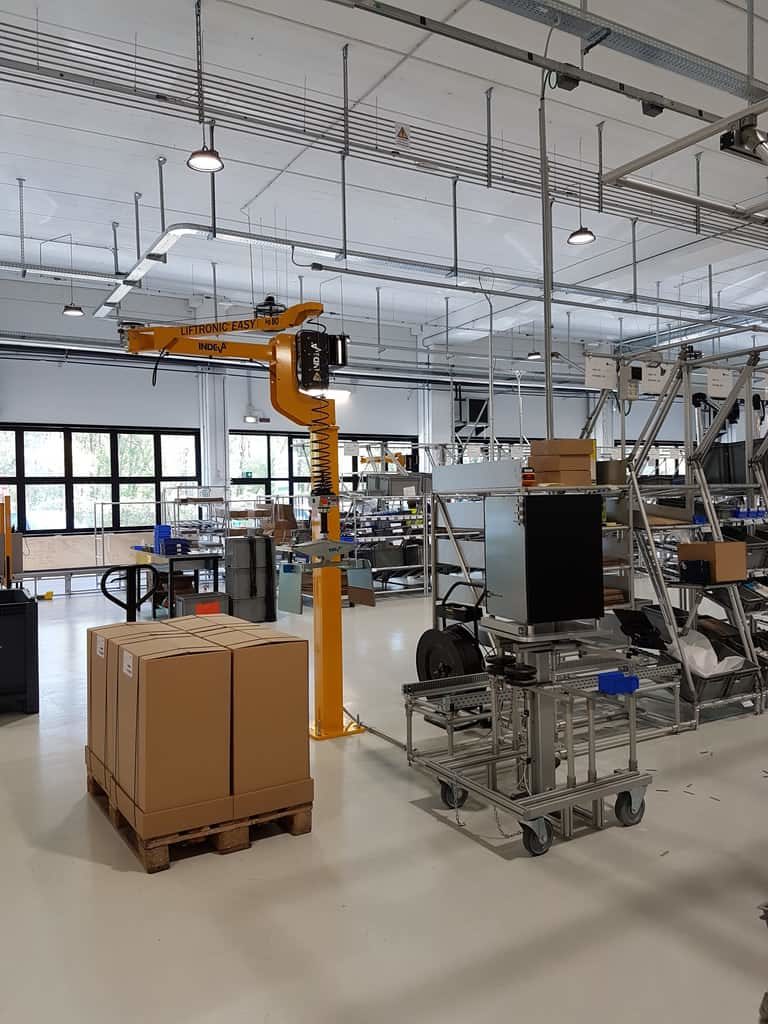

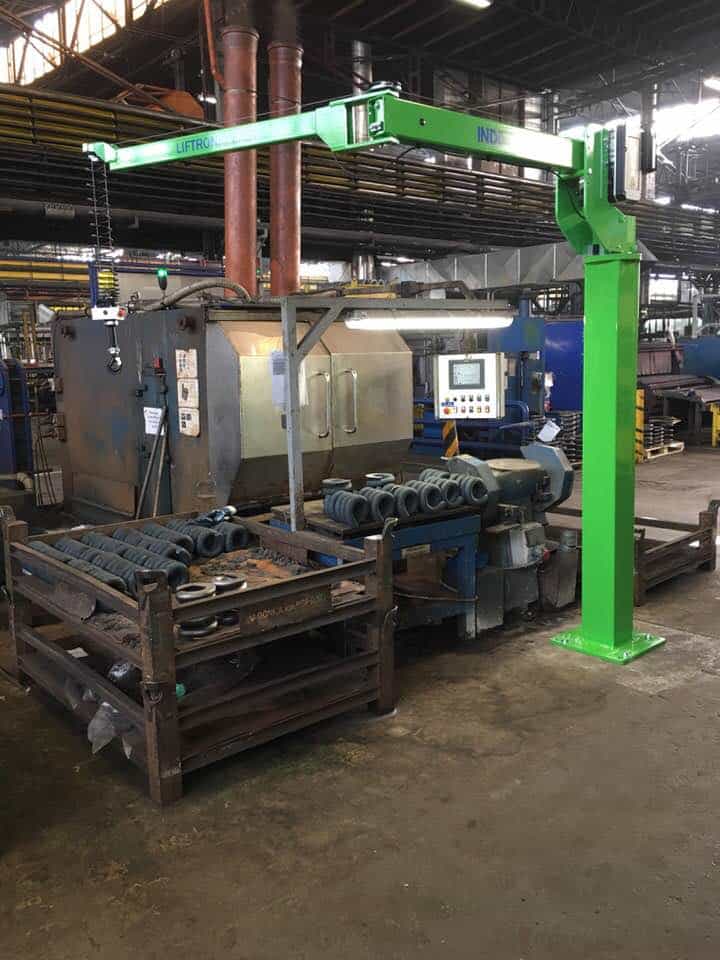

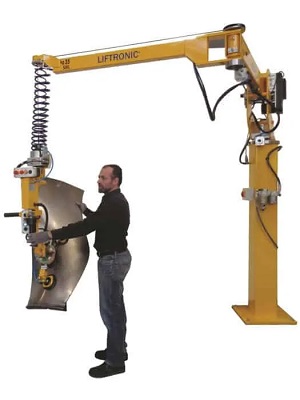

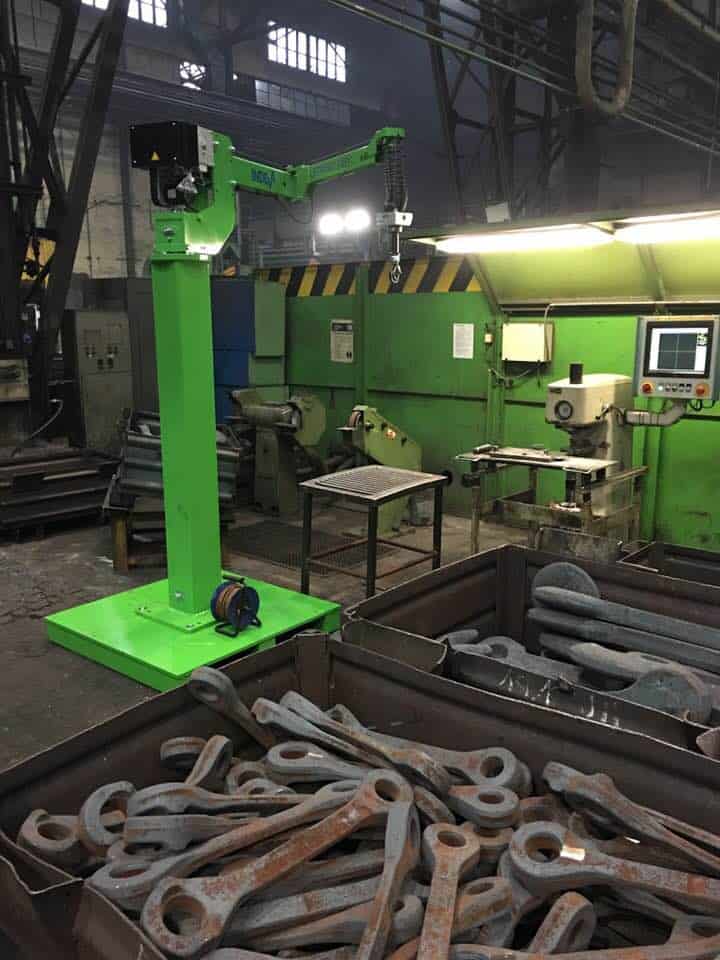

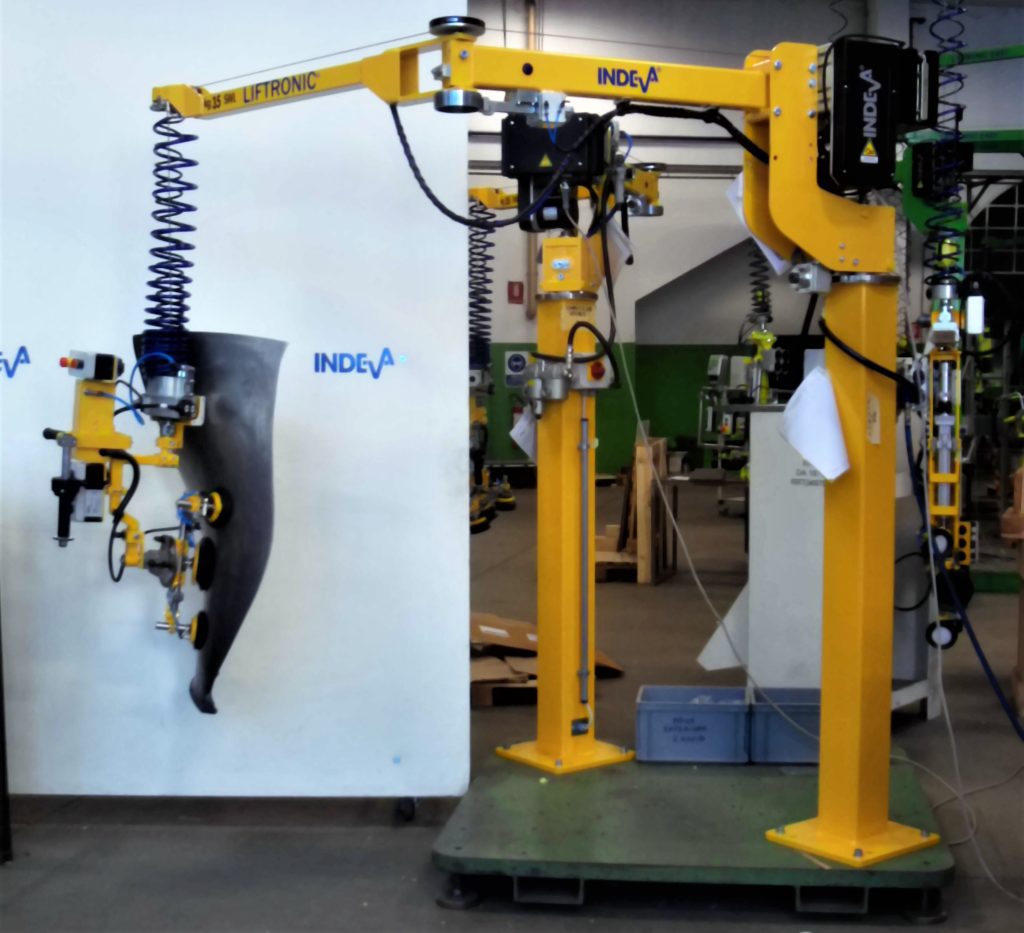

The Liftronic ® intelligent manipulator, mounted on a telescopic column, is robust, smooth, backlash-free and easy to maintain, even when working with off-centered loads.

Key features

• Automatic weight detection and automatic balancing
• Wide view and maneuverability
• Unsurpassed safety
• Ergonomic design
• Special gripping devices
• Compact and lightweight
• Fast, responsive and precise
• Low carbon footprint

TECHNICAL DATA

Max. total load capacity: 120 kg
Max. lifting speed: 18 m/min
Vertical telescopic travel: up to 1.30 m

Манипулятор на колонне INDEVA® Liftronic® Air: пневматический привод, электронное управление

Основные характеристики

• Давление воздуха 0,65 МПа (6,5 бар)
• Питание 115/230 В переменного тока, 50/60 Гц
• Потребляемая мощность 100 ВА
• Степень защиты корпуса IP54
• Уровень шума < 70 дБ(А)
• Ограничитель грузоподъемности
• Скорость подъема от 15 до 30 м/мин
• Тормоз оси основной колонны
• Тормоз оси промежуточного шарнира
• Вращение колонны на 360°
• Вращение оси инструмента на 550°
• Медленное опускание при потере давления
• Тип балансировки: предустановленная нагрузка или самобалансировка (в зависимости от инструмента)

Технические характеристики можно скачать в пдф.

ТЕХНИЧЕСКИЙ ПАСПОРТ LIFTRONIC AIR 80 – МОНТАЖ НА КОЛОННЕ
ТЕХНИЧЕСКИЙ ПАСПОРТ LIFTRONIC AIR 160 – МОНТАЖ НА КОЛОННЕ
ТЕХНИЧЕСКИЙ ПАСПОРТ LIFTRONIC AIR 250 – МОНТАЖ НА КОЛОННЕ
ТЕХНИЧЕСКИЙ ПАСПОРТ LIFTRONIC AIR 400 – МОНТАЖ НА КОЛОННЕ

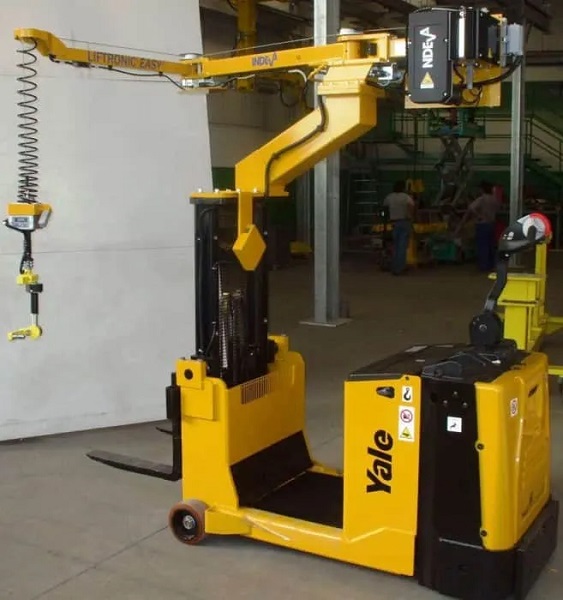

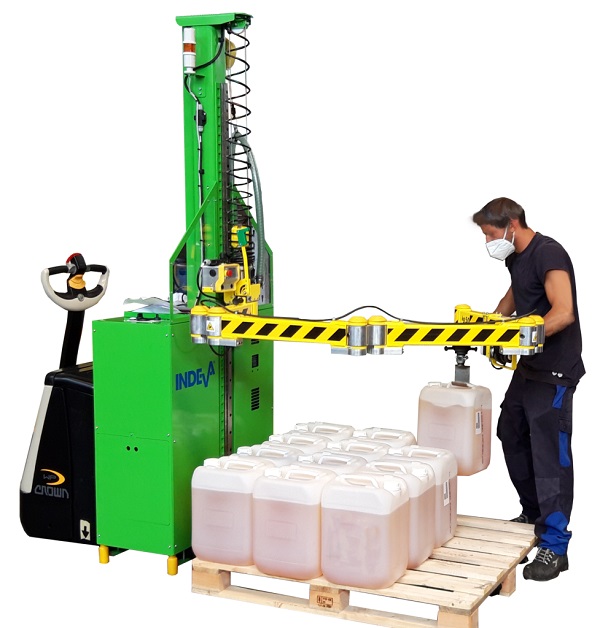

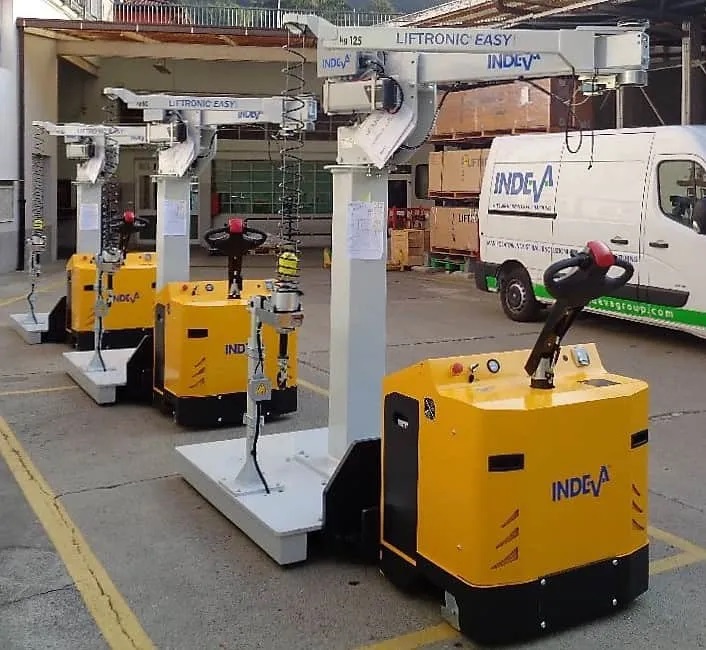

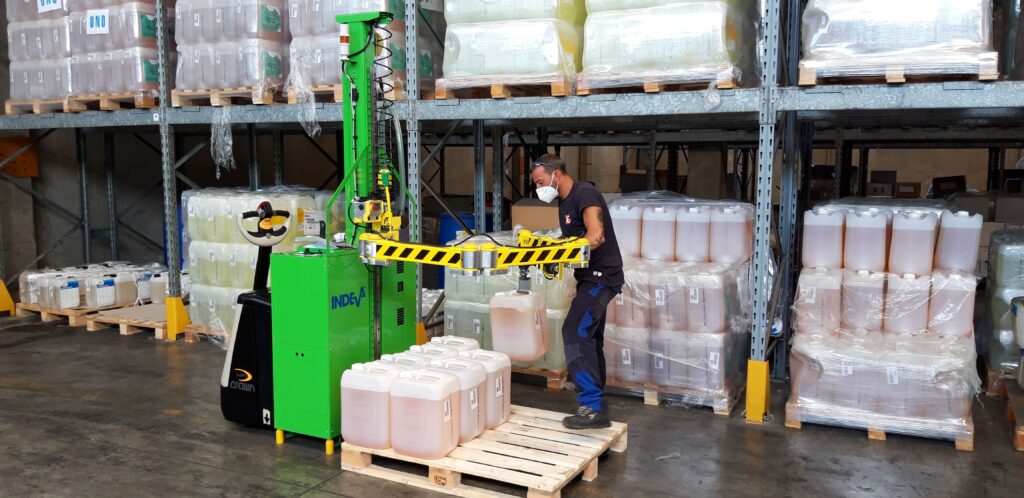

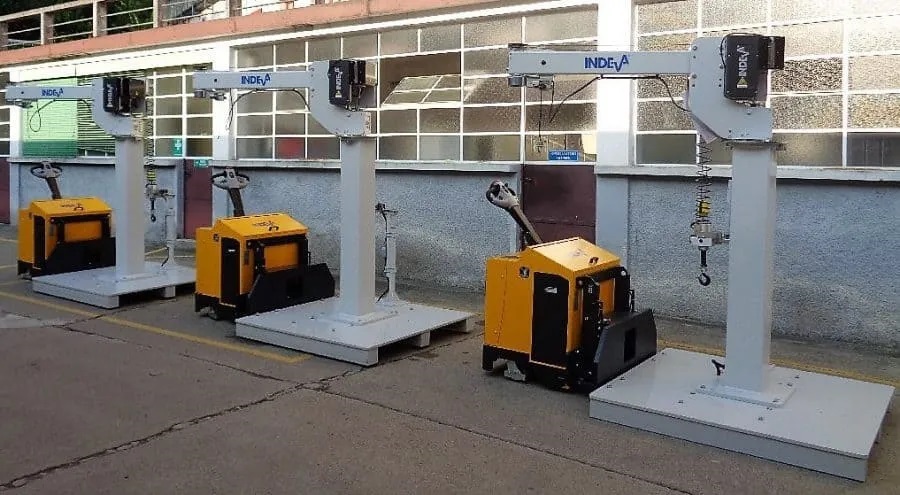

Liftronic Mobile is an INDEVA lifting aid designed for installation on a pallet truck and use wherever needed.

Key Features and Benefits of Liftronic Mobile

• Easily attaches to a pallet truck.
• One lifting aid is available for various workstations.
• Ensures extremely smooth handling thanks to a 4-joint arm.
• Automatic weight detection and automatic balancing
• Safe and easy movement
• Fast, responsive, and precise
• Low carbon footprint
• Easy to change grippers for different applications
• Easy maintenance; all components are easily accessible on a removable card.
