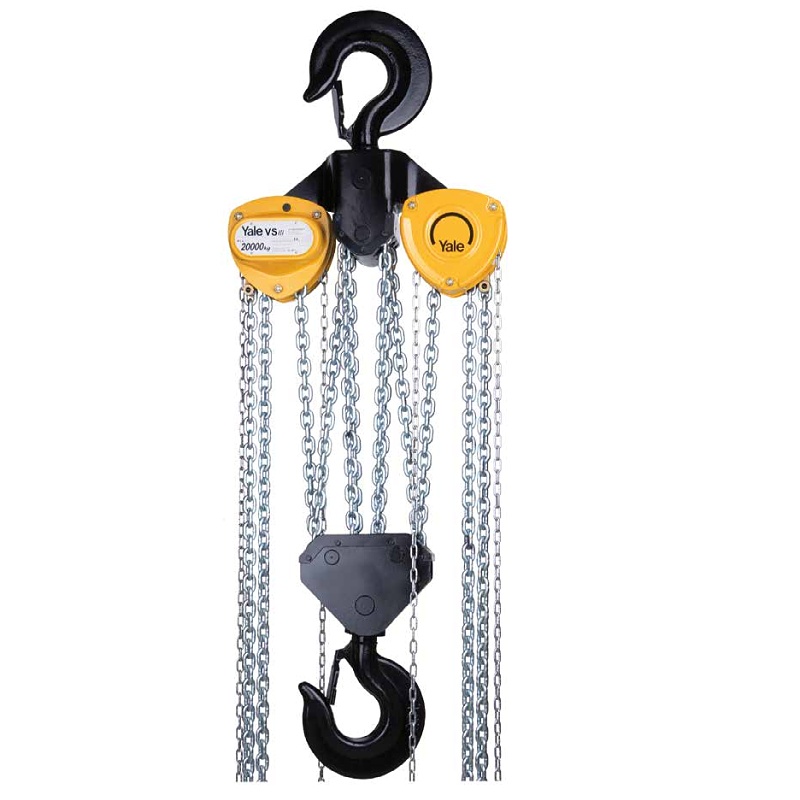

Manual chain hoist YALE VSIII

Manual chain hoist YALE VSIII Load capacity 8000kg -20000kg

These hoists combine all possible advantages - quality, safety, performance and all this at a reasonable price. Hoists marked Plus are supplied in anti-corrosion design. The chains are made of stainless steel. The hooks are bronze plated and can rotate 360 degrees. This type of hoists is recommended for use in the food and chemical industries. Complies with European standards and regulations.

Download Price List buy product

Name	Carrying capacity	Number of chain strands	Chain sizes	Hand chain run for lifting	Weight at standard lifting height 3m.
	kg	p	mm	on 1m, m	kg
Manual chain hoist YALE VSplus 8/4	8000	4	10х30	329	69
Manual chain hoist YALE VSplus 10/4	10000	4	10х30	329	69
Manual chain hoist ь YALE VSplus 15/8	15000	8	10х30	659	157
Manual chain hoist YALE VSplus 20/8	200000	8	10х30	659	157

Manual chain hoist VSIII

Characteristics:

strong bolts connecting the sides of the housing, the gearbox cover and the manual chain mechanism cover
Precision made guide rollers ensure smooth chain movement
Bearings in the gearbox, sidewall and load chain pulley are high-quality parts that ensure a long service life.
Galvanized and yellow chrome plated brakes are protected against corrosion.
Load chain galvanized, calibrated
To prevent chain friction and operator injury, the chain entry hole and top hook mount are covered with protective material
