Lever Hoists YALE D 95

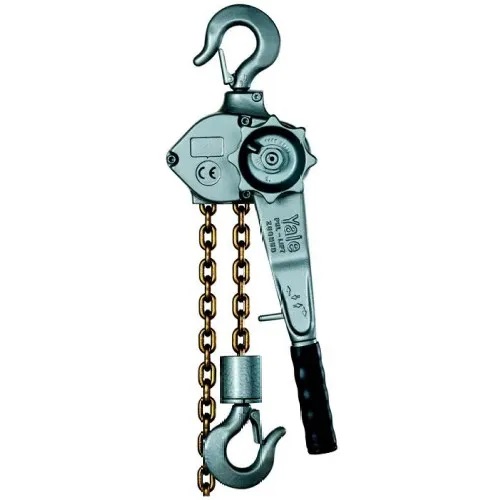

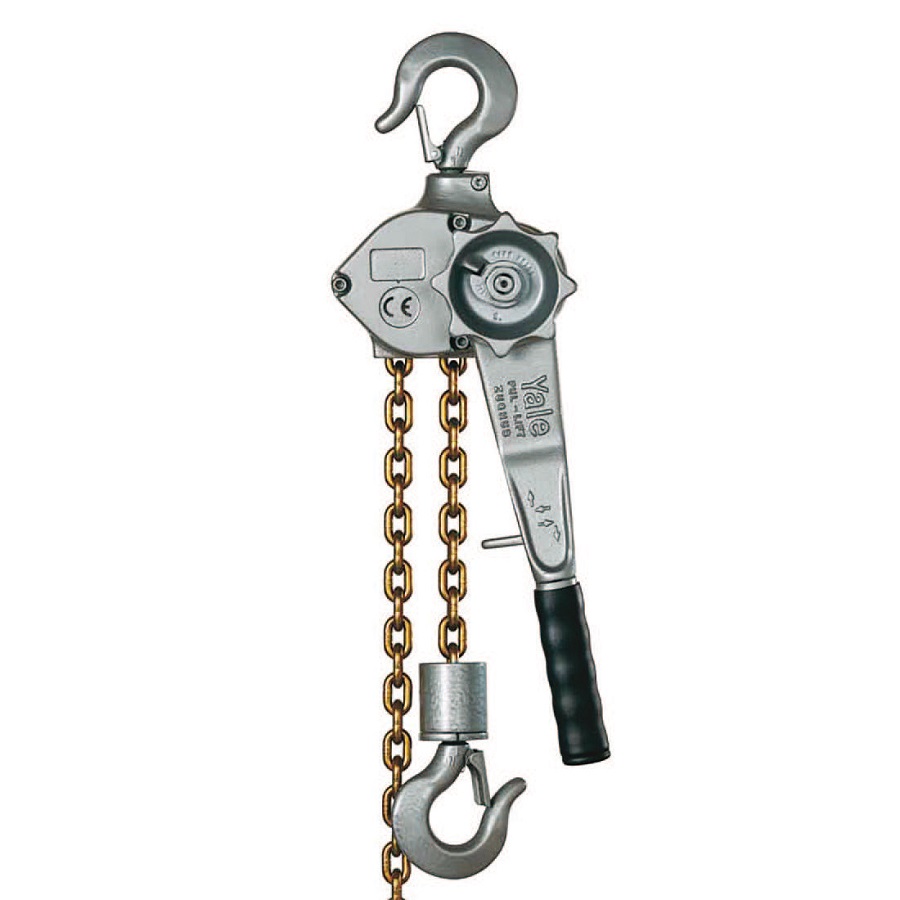

Manual lever hoist YALE D 95 with flat-link chain.

Load capacity 1500 – 3000 kg

The D 95 model, made of ductile cast iron, retains the technical features of the D 85 model, but is distinguished by its low weight and rather short distance between the suspension and the load hook. A universal device for moving, installing and placing cargo.

Download Price List buy product

Name	Carrying capacity	Number of chain strands	Chain sizes	Lifting height with one turn of the lever	Manual force at nom. cargo	Weight at standard lift height 1.5m
	kg	pcs	mm	mm	Н	кг
Manual lever hoist YALE D 95	1500	1	6,2 х 18,5	35	27	9.9
Manual lever hoist YALE D 95	3000	1	9 х 27,2	38	49	16.5

Characteristics:

It has an automatic cargo brake that operates on the principle of self-braking. For example, when hanging a load, the brake is prevented from unintentionally releasing when the load sways.
Alloy steel flat link chain, galvanized, in accordance with national and international standards and regulations.
Standard free chain device for quickly hanging a load or pulling a chain through the hoist in both directions.
The body and handle are made of impact-resistant ductile cast iron.
The short ergonomic handle is equipped with a rubber grip.

Options:

All models can be optionally equipped with an anti-overload device in the form of a safety friction clutch, preset to a load of 25 ± 15%. Hoist with strapping chain.
