Lever Hoists YALE AL 750êã - 3000êã

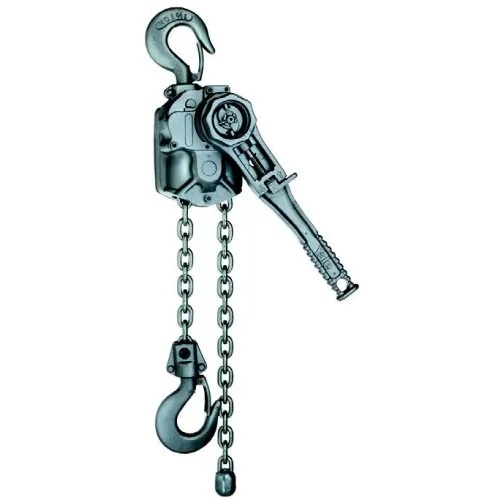

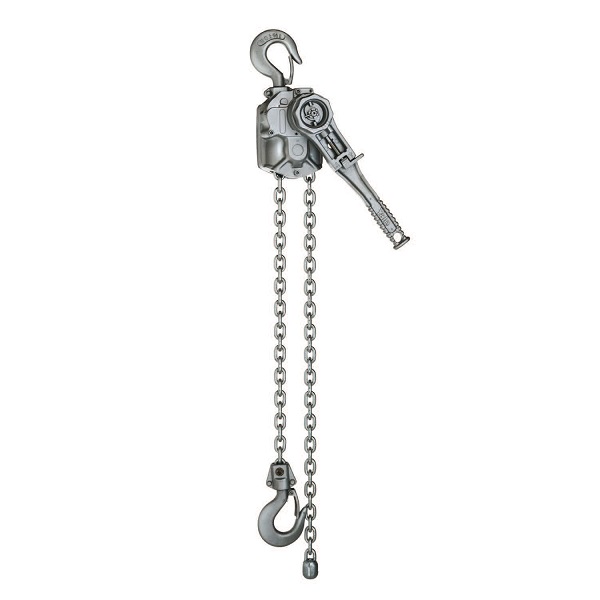

Manual lever hoist YALE AL
Load capacity 750 – 3000 kg
The closed body, handle and manual feed handwheel are made of high quality aluminum. Thanks to precise needle bearings, the hoist can operate with little effort.
| Name | Carrying capacity | Number of chain strands | Chain sizes | Lifting height with one turn of the lever | Weight at standard lifting height 3m. |
|---|---|---|---|---|---|
| kg | pcs | ìì | mm | kg | |
| 750 | 1 | 6.3×19.1 | 30 | 6.4 | |
| 1000 | 1 | 6.3×19.1 | 30 | 6.6 | |
| 1500 | 1 | 7.1×21.2 | 16 | 10 | |
| 3000 | 1 | 10×30.2 | 14 | 18 |
|
