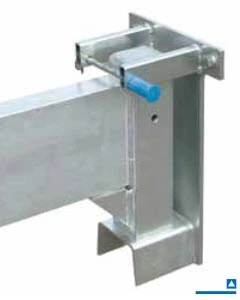

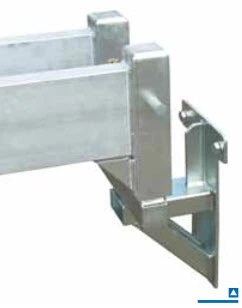

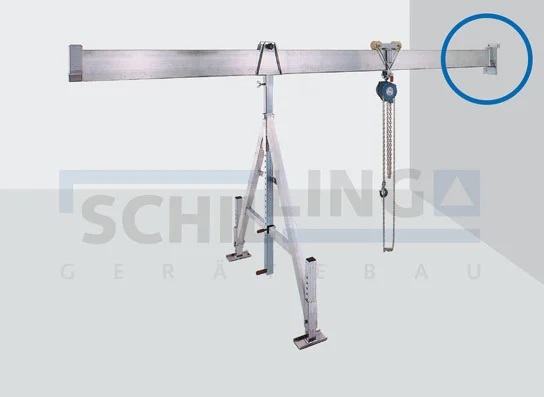

Wall Bracket for Aluminium Gantry Cranes

• The Wall Bracket facilitates the attachment of the beam to a wall, thus increasing the Crane´s range of application. Especially useful when Crane is used through windows or doors.
• The aluminium beam/aluminium double beam can be rotated through 180° (without load) on the Wall Bracket.

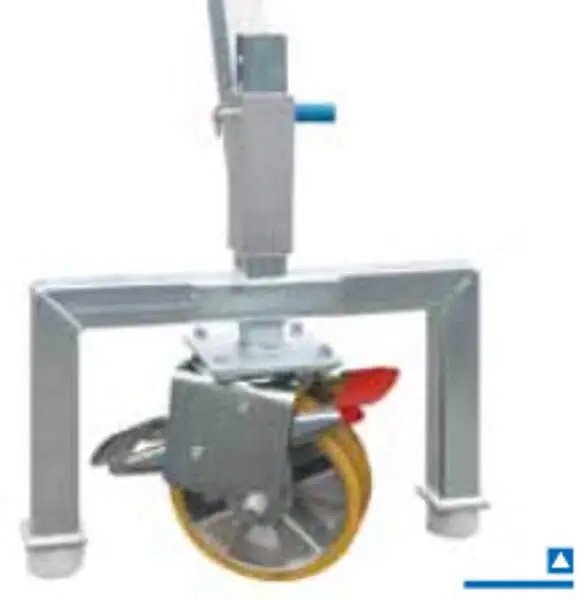

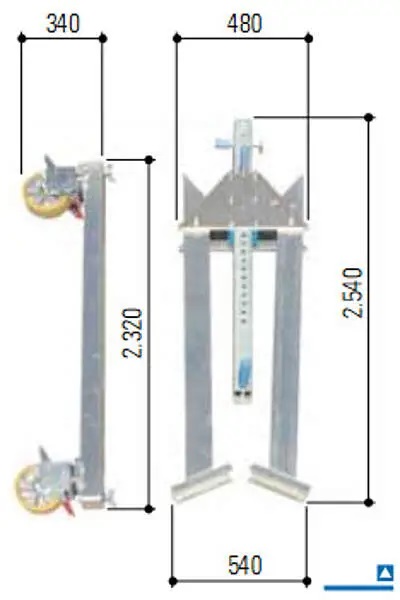

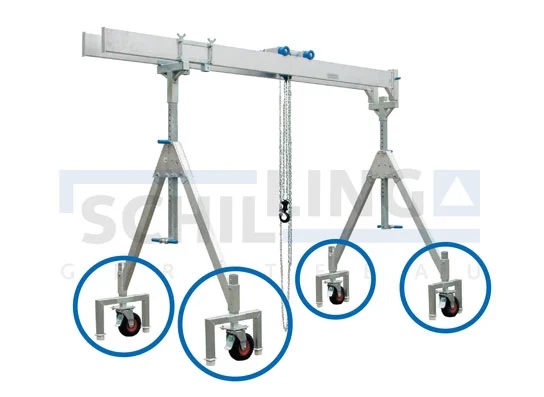

Wheel Kit for Aluminium Gantry Cranes

• Facilitates the moving of the assembled Aluminium Gantry Crane without load.
• The leg and fork construction permits the lateral stands to remain upright when assembling and disassembling.
• The unloaded Aluminium Gantry Crane can easily be moved to the working area.
• The Wheel Kit spares any mounting and dismounting work.
• The spring mounted guide rolls allow the lateral stands to rest directly on the feet when under load.
• The adjustment feet are individually height adjustable.
• 1 Wheel Kit = 4 ”forks”

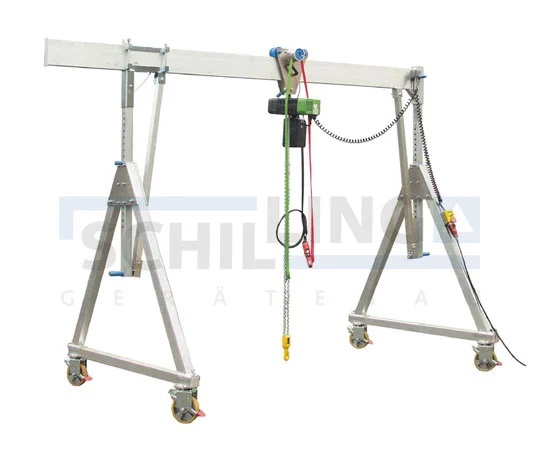

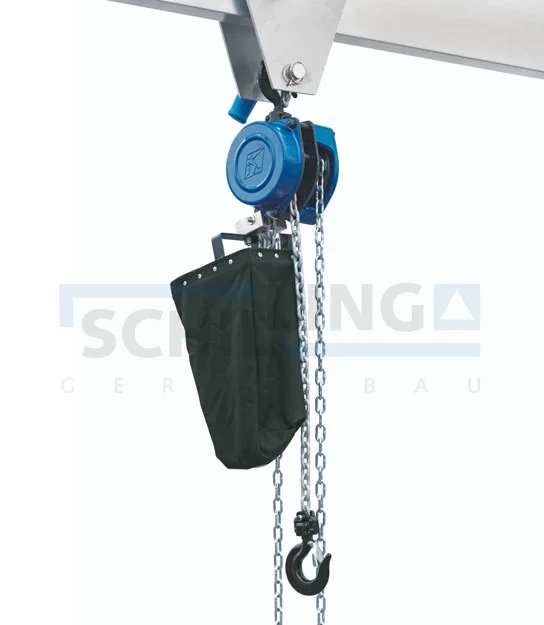

Chain Hoist for Lifting Equipment

• Compact and light because of high-quality materials.
• Minimum weight, thus easy to hang up.
• Two-step spur gear.
• Self-lubricating slide bearings.
• Safe friction disk brake with asbestos-free brake disks
• High-strength, galvanized round link chain according to DIN 5684.
• Ball-bearing load hook.
• The closed housing protects the drive and brake against dirt.
• All mechanical parts are made of high-quality steel.
• Load hook with integrated snap system.
• Incl. chain bag for Chain Hoist.
  The load chain is stored and kept in the chain bag.

Такое грузоподъемное устройство как полиспаст состоит из нескольких блоков, собранных в обоймы, которые огибаются канатом. Главное его предназначение перемещать грузы.

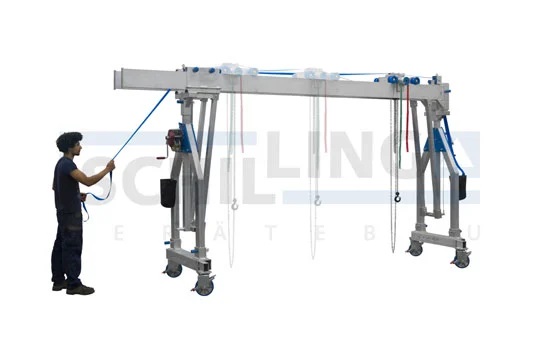

Circulating tape

• The length of the circulating belt depends on the height of the crane and the length of the supporting beams.
  with built-in pressure strip at both ends of the tape
• - These components serve to weigh down the circulating belt.
  with built-in clamp
• - from both end ends of the aluminum load-bearing beam (single)
• - on the fitting for the nozzle, as well as on the horizontal regulator (double beam)
• The circulating linen receives the necessary tension, i.e. the area under the carriage with the brake remains free.
• The user is in a safe area from which he can move the carriage along the aluminum (double) support beam.
• This design will make the user’s work as easy as possible.

Lateral Extension Beam for Gantry Cranes

Lateral Extension Beam in combination with Aluminium Gantry Crane as well as slab clamp (not included in delivery).

• Accessory for our Aluminium Gantry Cranes.
• This item is used when standard lateral stands cannot be placed directly behind the load (e.g. gravestone is close to or in front of a wall).

Packing and Transportation Box for Gantry Cranes

• incl. folding lid,
  with hinges
• with shackle to hook in a padlock
• with two flush-mounted handles on the lid
• with 6 steel casters
• heavy-duty polyurethane lining with integrated caster and live ring brake
• The Packing and Transportation Box can be moved individually and without any tools.
• The ground of the Packing and Transportation Box is strengthened so it can be lifted with a hand pallet truck or stacker, e.g. for loading onto a truck.
• The single components of the Aluminium Gantry Crane can be stored systematically and completely, useful preserved as well as space saving transported.
• The user „on side“ always does have a complete Aluminium Gantry Crane System on hand.

The Packing and Transportation Box will be adapted to the particular Aluminium Gantry Crane (with accessories).
